= = Q6. Find the transfer function H(s) V.(s) Sketch the Bode plots for the case Ri = 1 k12, R2 = Vs(s) 100 k32, C1 = C2

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

= = Q6. Find the transfer function H(s) V.(s) Sketch the Bode plots for the case Ri = 1 k12, R2 = Vs(s) 100 k32, C1 = C2

Post by answerhappygod »

Q6 Find The Transfer Function H S V S Sketch The Bode Plots For The Case Ri 1 K12 R2 Vs S 100 K32 C1 C2 1
Q6 Find The Transfer Function H S V S Sketch The Bode Plots For The Case Ri 1 K12 R2 Vs S 100 K32 C1 C2 1 (46.87 KiB) Viewed 26 times

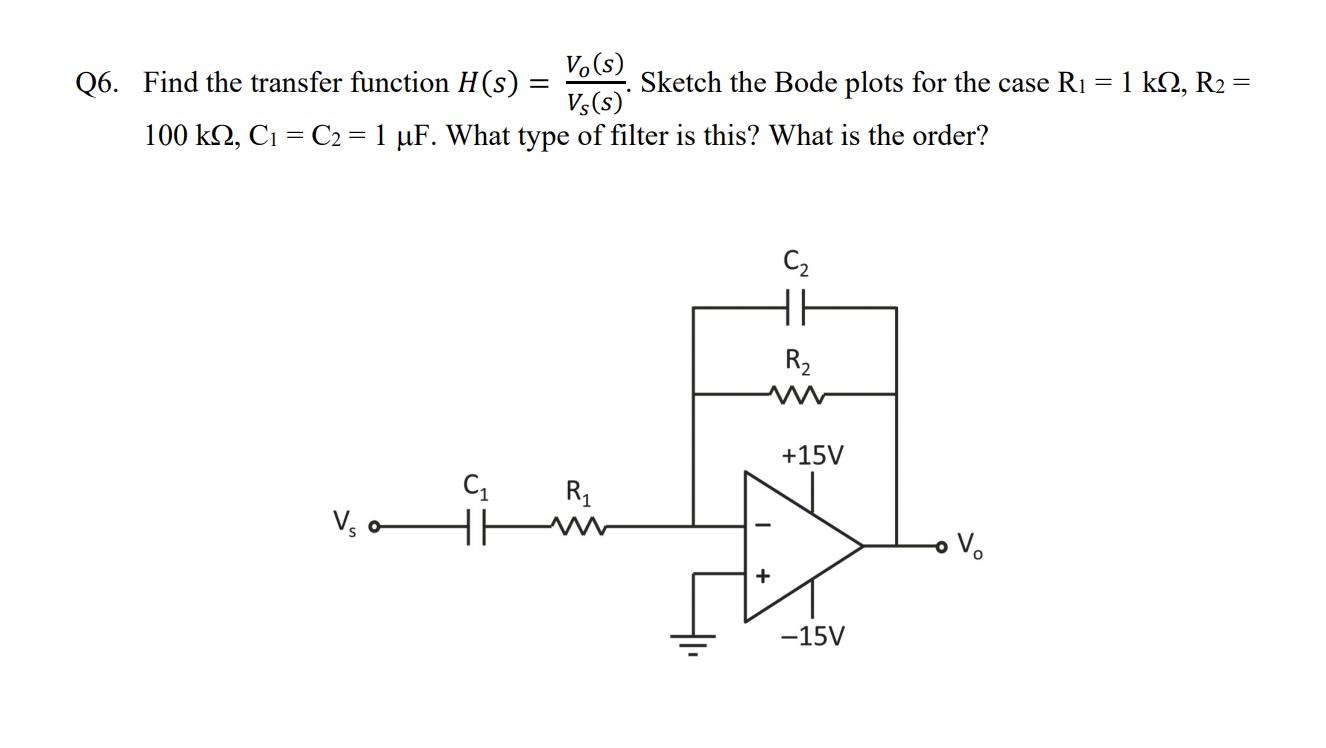

= = Q6. Find the transfer function H(s) V.(s) Sketch the Bode plots for the case Ri = 1 k12, R2 = Vs(s) 100 k32, C1 = C2 = 1 uF. What type of filter is this? What is the order? C₂ HE R2 +15V R1 Vsa Ci HH V. + -15V
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
