1. Design a FDMA scheme that uses SSB-SC. If the voice message is assumed to have a 4 kHz band- width, draw the spectrum

Post by answerhappygod »

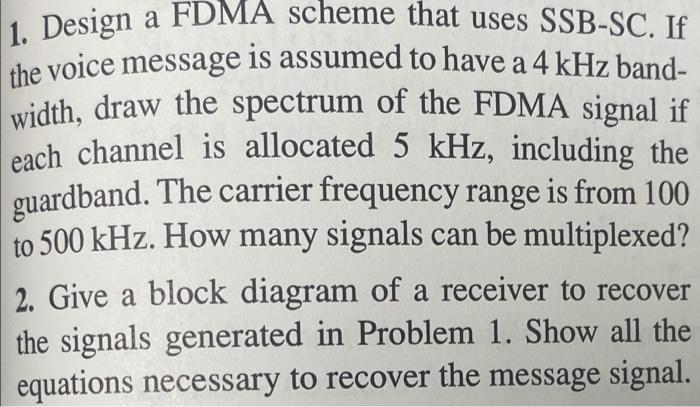

1 Design A Fdma Scheme That Uses Ssb Sc If The Voice Message Is Assumed To Have A 4 Khz Band Width Draw The Spectrum 1
1 Design A Fdma Scheme That Uses Ssb Sc If The Voice Message Is Assumed To Have A 4 Khz Band Width Draw The Spectrum 1 (59.63 KiB) Viewed 21 times
1. Design a FDMA scheme that uses SSB-SC. If the voice message is assumed to have a 4 kHz band- width, draw the spectrum of the FDMA signal if each channel is allocated 5 kHz, including the guardband. The carrier frequency range is from 100 to 500 kHz. How many signals can be multiplexed? 2. Give a block diagram of a receiver to recover the signals generated in Problem 1. Show all the equations necessary to recover the message signal.
