Vop For the NMOS common source amplifier in Figure P. 5, the transistor parameters are: Vin=0,4 V, K, = 0.5 mA/V2, and 1
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Vop For the NMOS common source amplifier in Figure P. 5, the transistor parameters are: Vin=0,4 V, K, = 0.5 mA/V2, and 1

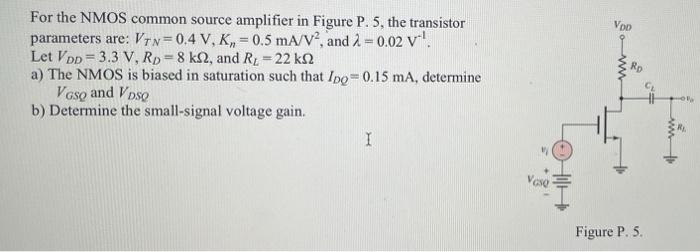

Vop For the NMOS common source amplifier in Figure P. 5, the transistor parameters are: Vin=0,4 V, K, = 0.5 mA/V2, and 1 = 0.02 v'. Let Vpp = 3.3 V, RD=8 k 2, and R = 22 k22 a) The NMOS is biased in saturation such that Ipo-0.15 mA, determine Vaso and Vpso b) Determine the small-signal voltage gain. I CL w Lunt Vase Figure P. 5.
