(v) An analogue ammeter is connected in series with the resistor Rs for measuring the current 12. However, measured valu

Post by answerhappygod »

V An Analogue Ammeter Is Connected In Series With The Resistor Rs For Measuring The Current 12 However Measured Valu 1
V An Analogue Ammeter Is Connected In Series With The Resistor Rs For Measuring The Current 12 However Measured Valu 1 (99.08 KiB) Viewed 19 times

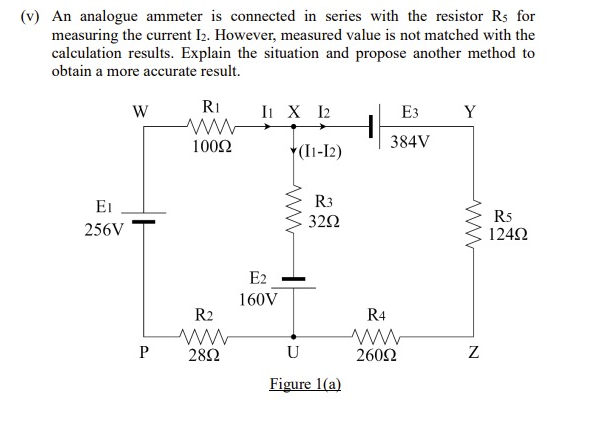

(v) An analogue ammeter is connected in series with the resistor Rs for measuring the current 12. However, measured value is not matched with the calculation results. Explain the situation and propose another method to obtain a more accurate result. W RI 11 X 12 E3 Y 10092 384V Y(11-12) W EI 256V R3 322 RS 12422 E2 160V R4 R2 W 2892 P U 26092 Z Figure 1(a)
