Caring 2022 (120 points) Problem #4 (15 points) Use a Mealy Machine to design a logic circuit for a sequential detector

[answerhappygod]

Caring 2022 120 Points Problem 4 15 Points Use A Mealy Machine To Design A Logic Circuit For A Sequential Detector 1 (26.97 KiB) Viewed 20 times

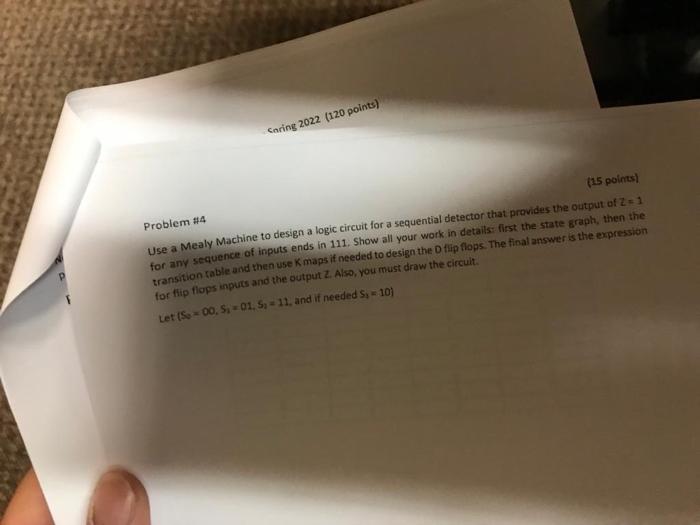

Caring 2022 (120 points) Problem #4 (15 points) Use a Mealy Machine to design a logic circuit for a sequential detector that provides the output of 2 = 1 for any sequence of inputs ends in 111. Show all your work in details: fliest the state graph, then the transition table and then use k maps it needed to design the D flip flops. The final answer is the expression for flip flops inputs and the output Z. Also, you must draw the circult. Let (5 - 00, S = 01. 5. - 11. and if needed 5 = 10)
