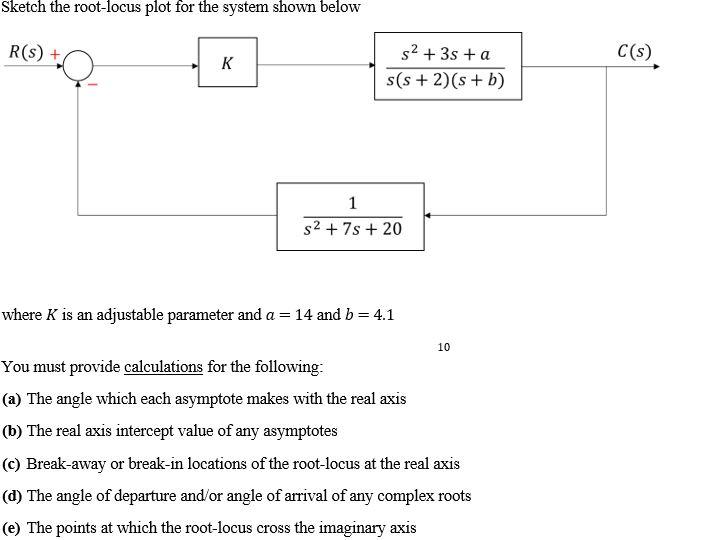

Sketch the root-locus plot for the system shown below R(S) + C(s) K S2 + 3s + a s(s+2)(s + b) 1 $2 + 7s + 20 where K is

[answerhappygod]

Sketch The Root Locus Plot For The System Shown Below R S C S K S2 3s A S S 2 S B 1 2 7s 20 Where K Is 1 (42.74 KiB) Viewed 20 times

Sketch the root-locus plot for the system shown below R(S) + C(s) K S2 + 3s + a s(s+2)(s + b) 1 $2 + 7s + 20 where K is an adjustable parameter and a = 14 and b= 4.1 10 You must provide calculations for the following: (a) The angle which each asymptote makes with the real axis (b) The real axis intercept value of any asymptotes (c) Break-away or break-in locations of the root-locus at the real axis (d) The angle of departure and/or angle of arrival of any complex roots (e) The points at which the root-locus cross the imaginary axis
