i. Fig. QB1.a shows a non-inverting amplifier. The circuit is to be designed for an input resistance of 10kn, and output

[answerhappygod]

I Fig Qb1 A Shows A Non Inverting Amplifier The Circuit Is To Be Designed For An Input Resistance Of 10kn And Output 1 (72.82 KiB) Viewed 23 times

I Fig Qb1 A Shows A Non Inverting Amplifier The Circuit Is To Be Designed For An Input Resistance Of 10kn And Output 2 (53.46 KiB) Viewed 23 times

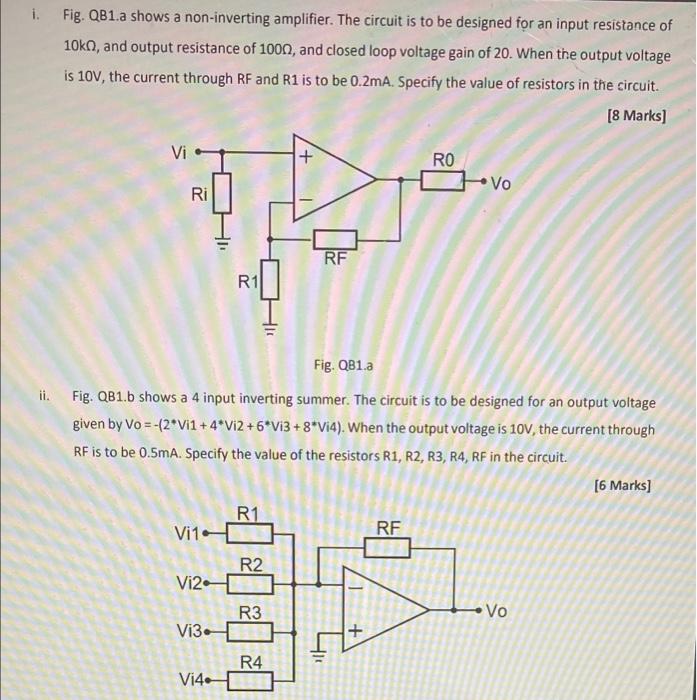

i. Fig. QB1.a shows a non-inverting amplifier. The circuit is to be designed for an input resistance of 10kn, and output resistance of 1000, and closed loop voltage gain of 20. When the output voltage is 10V, the current through RF and R1 is to be 0.2mA. Specify the value of resistors in the circuit. [8 Marks) Vi + RO OVO Ri RF R1 ii. Fig. QB1.a Fig. QB1.b shows a 4 input inverting summer. The circuit is to be designed for an output voltage given by Vo =-(2*Vi1 + 4*V12 + 6*Vi3 + 8*Vi4). When the output voltage is 10V, the current through RF is to be 0.5mA. Specify the value of the resistors R1, R2, R3, R4, RF in the circuit. [6 Marks) R1 Vi1- RF R2 Vize R3 Vo Vi3 + + 414 R4 Vi4

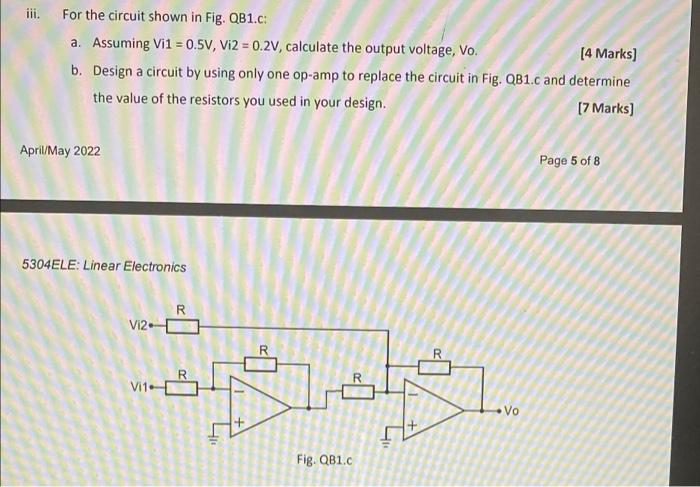

iii. For the circuit shown in Fig. QB1.c: a. Assuming Vi1 = 0.5V, Vi2 = 0.2V, calculate the output voltage, Vo. [4 Marks) b. Design a circuit by using only one op-amp to replace the circuit in Fig. QB1.c and determine the value of the resistors you used in your design. [7 Marks) April/May 2022 Page 5 of 8 5304ELE: Linear Electronics V12 Vine VO Fig. QB1.0
