AS. An elevator is driven by a 380 V, 50 Hz, 1480 rev/min, 4-pole, star-connected three- phase induction motor with vari

Post by answerhappygod »

As An Elevator Is Driven By A 380 V 50 Hz 1480 Rev Min 4 Pole Star Connected Three Phase Induction Motor With Vari 1
As An Elevator Is Driven By A 380 V 50 Hz 1480 Rev Min 4 Pole Star Connected Three Phase Induction Motor With Vari 1 (400.18 KiB) Viewed 20 times
urgent!!
a-c thank you

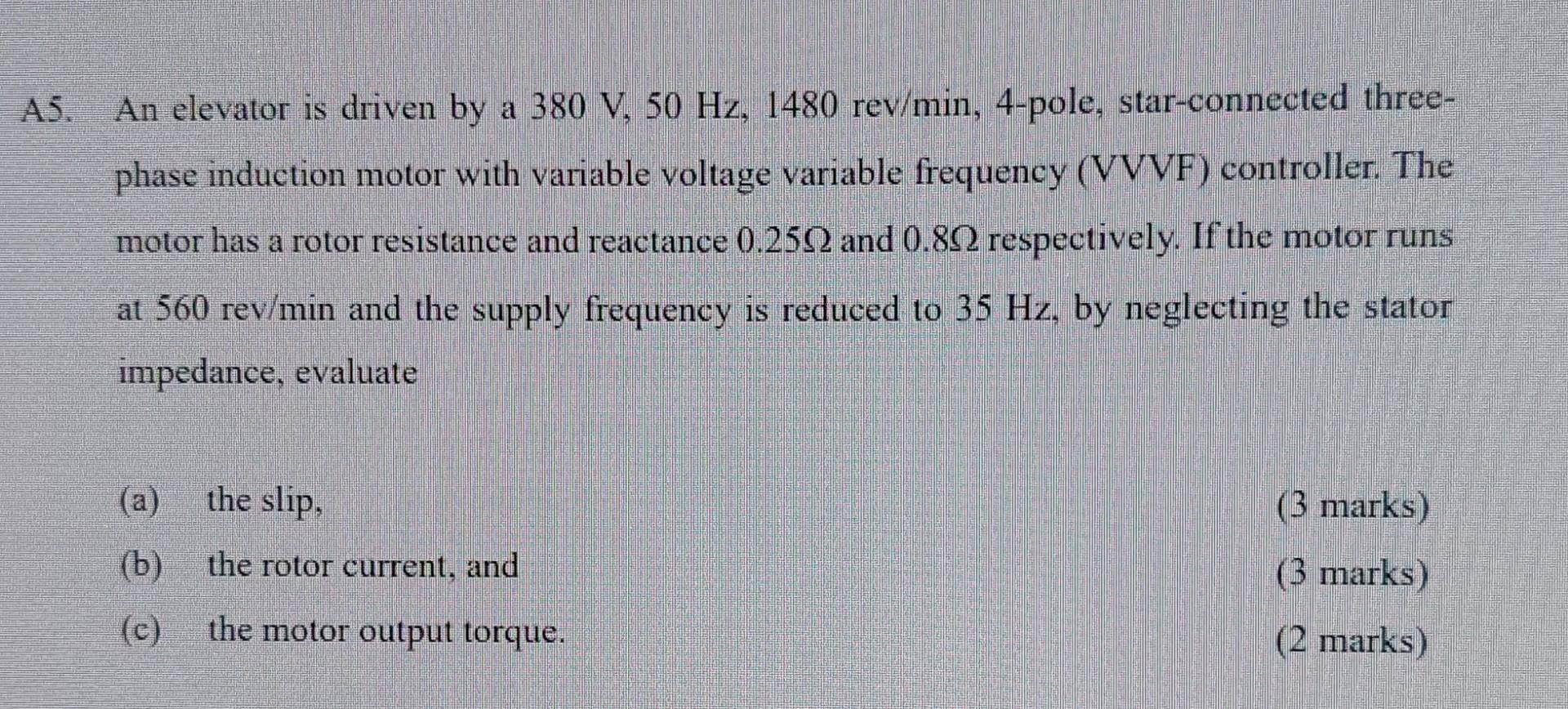

AS. An elevator is driven by a 380 V, 50 Hz, 1480 rev/min, 4-pole, star-connected three- phase induction motor with variable voltage variable frequency (VVVF) controller. The motor has a rotor resistance and reactance 0.2522 and 0.812 respectively. If the motor runs at 560 rev/min and the supply frequency is reduced to 35 Hz, by neglecting the stator impedance, evaluate (a) the slip. (3 marks) (b) the rotor current, and (3 marks) (c) the motor output torque. (2 marks)
