(a) A 1 KVA, 220/100 V, 50 Hz single-phase transformer has the following circuit parameters. Primary winding resistance:

Post by answerhappygod »

A A 1 Kva 220 100 V 50 Hz Single Phase Transformer Has The Following Circuit Parameters Primary Winding Resistance 1
A A 1 Kva 220 100 V 50 Hz Single Phase Transformer Has The Following Circuit Parameters Primary Winding Resistance 1 (29.53 KiB) Viewed 67 times

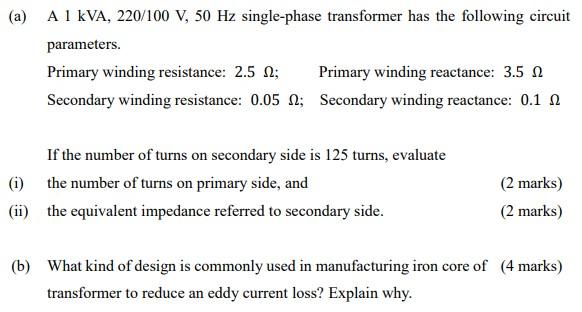

(a) A 1 KVA, 220/100 V, 50 Hz single-phase transformer has the following circuit parameters. Primary winding resistance: 2.5 N; Primary winding reactance: 3.5 2 Secondary winding resistance: 0.05 N; Secondary winding reactance: 0.1 If the number of turns on secondary side is 125 turns, evaluate (i) the number of turns on primary side, and (ii) the equivalent impedance referred to secondary side. (2 marks) (2 marks) (b) What kind of design is commonly used in manufacturing iron core of (4 marks) transformer to reduce an eddy current loss? Explain why.
