2. Two three phase short length overhead star connected transmission lines are connected in parallel to supply a load of

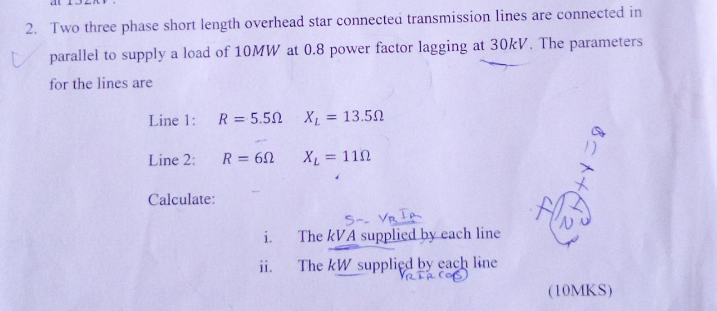

2. Two three phase short length overhead star connected transmission lines are connected in parallel to supply a load of 10MW at 0.8 power factor lagging at 30kV. The parameters for the lines are Line 1: R = 5.52 X = 13.5.2 Line 2: R = 6.22 X = 1112 B=x+f2 Calculate: S-VRIR i. The kVA supplied by each line The kW supplied by each line ii. (10MKS)
