A1. (a) A480/120 V, 50 Hz single-phase transformer has an equivalent impedance 0.025 12 referred to low voltage side, an

Post by answerhappygod »

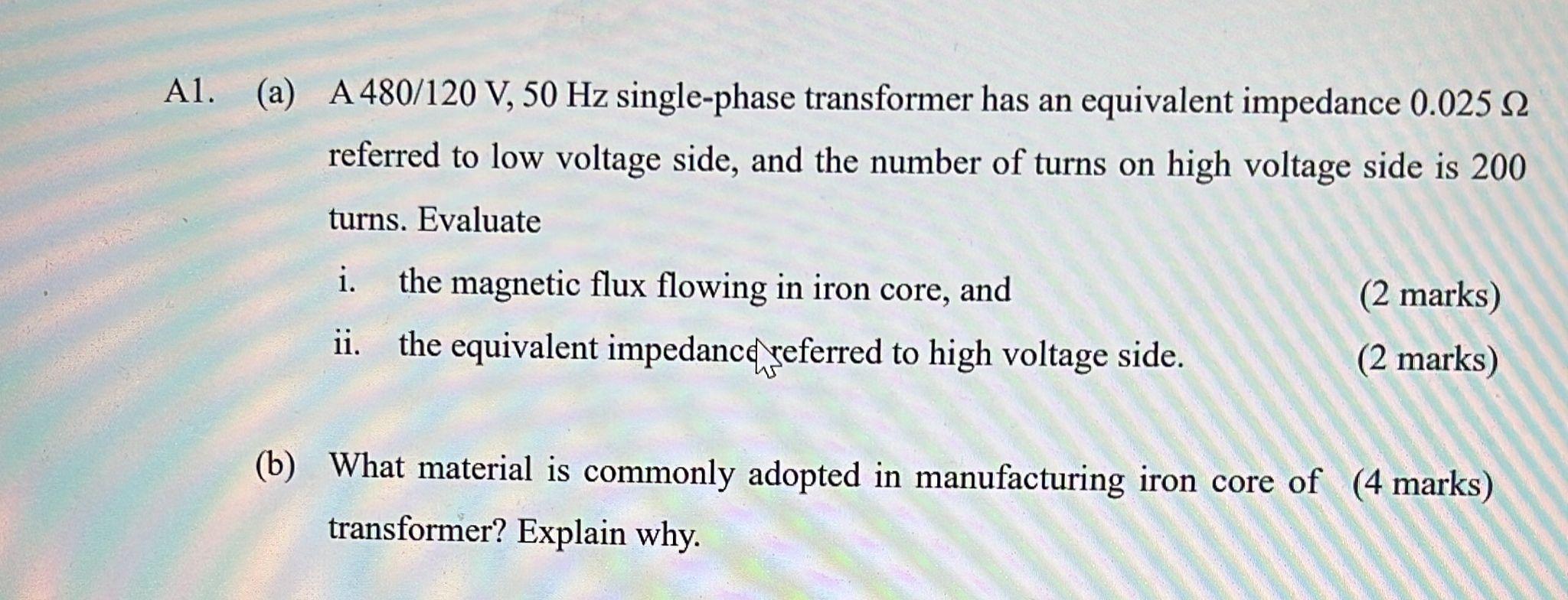

A1 A A480 120 V 50 Hz Single Phase Transformer Has An Equivalent Impedance 0 025 12 Referred To Low Voltage Side An 1
A1 A A480 120 V 50 Hz Single Phase Transformer Has An Equivalent Impedance 0 025 12 Referred To Low Voltage Side An 1 (216.36 KiB) Viewed 20 times
A1. (a) A480/120 V, 50 Hz single-phase transformer has an equivalent impedance 0.025 12 referred to low voltage side, and the number of turns on high voltage side is 200 turns. Evaluate i. the magnetic flux flowing in iron core, and ii. the equivalent impedancq\eferred to high voltage side. (2 marks) (2 marks) (b) What material is commonly adopted in manufacturing iron core of (4 marks) transformer? Explain why.
