1) Obtain the transfer function of the feedback control system shown in figure. Determine a region in the a-K plane that

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1) Obtain the transfer function of the feedback control system shown in figure. Determine a region in the a-K plane that

Post by answerhappygod »

1 Obtain The Transfer Function Of The Feedback Control System Shown In Figure Determine A Region In The A K Plane That 1
1 Obtain The Transfer Function Of The Feedback Control System Shown In Figure Determine A Region In The A K Plane That 1 (58.24 KiB) Viewed 26 times

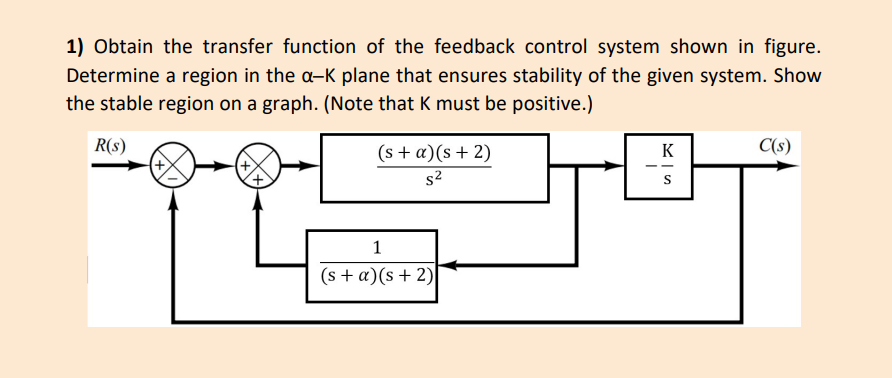

1) Obtain the transfer function of the feedback control system shown in figure. Determine a region in the a-K plane that ensures stability of the given system. Show the stable region on a graph. (Note that K must be positive.) R(S) K C(s) (s + a)(s+2) s2 x S 1 (s + a)(s +2)
