7. Figure 7 gives the C-V measurements for a Mos-capacitor on p-type silicon. Answer the following questions: ♡ с 50 pF
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
7. Figure 7 gives the C-V measurements for a Mos-capacitor on p-type silicon. Answer the following questions: ♡ с 50 pF

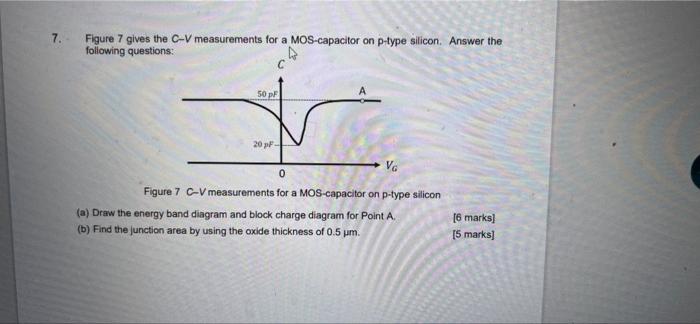

7. Figure 7 gives the C-V measurements for a Mos-capacitor on p-type silicon. Answer the following questions: ♡ с 50 pF 20- Va 0 Figure 7 C-V measurements for a MOS-capacitor on p-type silicon (a) Draw the energy band diagram and block charge diagram for Point A. (b) Find the junction area by using the oxide thickness of 0.5 um. [6 marks] [5 marks]
