a A 4 pole, 3 phase, 50 Hz, alternator has a star-connected winding with 60 slots and 4 conductors per slot. The coils a

Post by answerhappygod »

A A 4 Pole 3 Phase 50 Hz Alternator Has A Star Connected Winding With 60 Slots And 4 Conductors Per Slot The Coils A 1
A A 4 Pole 3 Phase 50 Hz Alternator Has A Star Connected Winding With 60 Slots And 4 Conductors Per Slot The Coils A 1 (23.16 KiB) Viewed 42 times

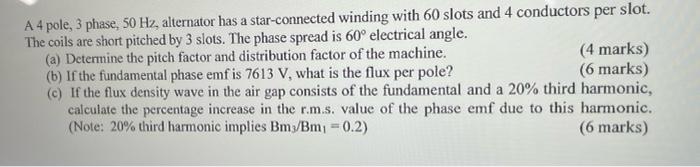

a A 4 pole, 3 phase, 50 Hz, alternator has a star-connected winding with 60 slots and 4 conductors per slot. The coils are short pitched by 3 slots. The phase spread is 60° electrical angle. (a) Determine the pitch factor and distribution factor of the machine. (4 marks) (b) If the fundamental phase emf is 7613 V, what is the flux per pole? (6 marks) (c) If the flux density wave in the air gap consists of the fundamental and a 20% third harmonic, calculate the percentage increase in the r.m.s. value of the phase emf due to this harmonic. (Note: 20% third harmonic implies Bm3/Bmı = 0.2) (6 marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
