Question 2 (50 marks) With reference to the circuit in Fig. 2. Ri= 1 kg. Rf = 5 kg and Cf = 1 nF. 35% (a) calculate the

[answerhappygod]

Question 2 50 Marks With Reference To The Circuit In Fig 2 Ri 1 Kg Rf 5 Kg And Cf 1 Nf 35 A Calculate The 1 (55.26 KiB) Viewed 24 times

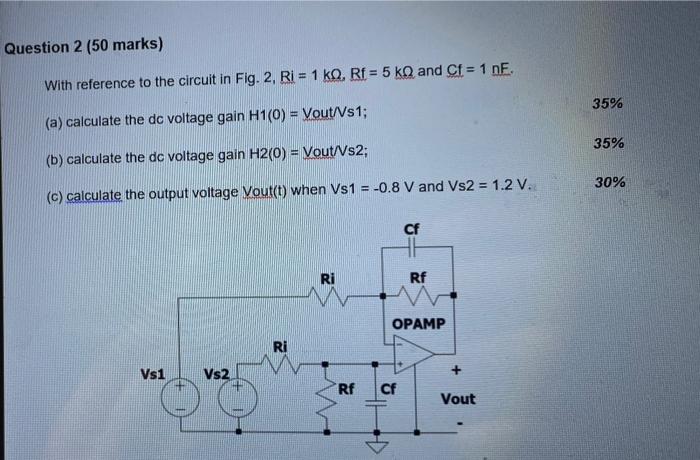

Question 2 (50 marks) With reference to the circuit in Fig. 2. Ri= 1 kg. Rf = 5 kg and Cf = 1 nF. 35% (a) calculate the de voltage gain H10) = Vout/Vs1; 35% (b) calculate the de voltage gain H2(0) = Vout/Vs2; 30% (c) calculate the output voltage Vout(t) when Vs1 = -0.8 V and Vs2 = 1.2 V. Cf Ri Rf OPAMP Ri + Vs1 Vs2 Rf cf Vout
