***Use LTSpice to solve this question***
***Use LTSpice to solve this question***
***Use LTSpice to solve this question***
Enter the answer along to 3 significant figures. include screen dumps of each circuit schematic, natlist and simulation results
Greek symbols equal 0
Use Ltspice To Solve This Question Use Ltspice To Solve This Question Use Ltspice To Solve This Question 1 (291.28 KiB) Viewed 21 times

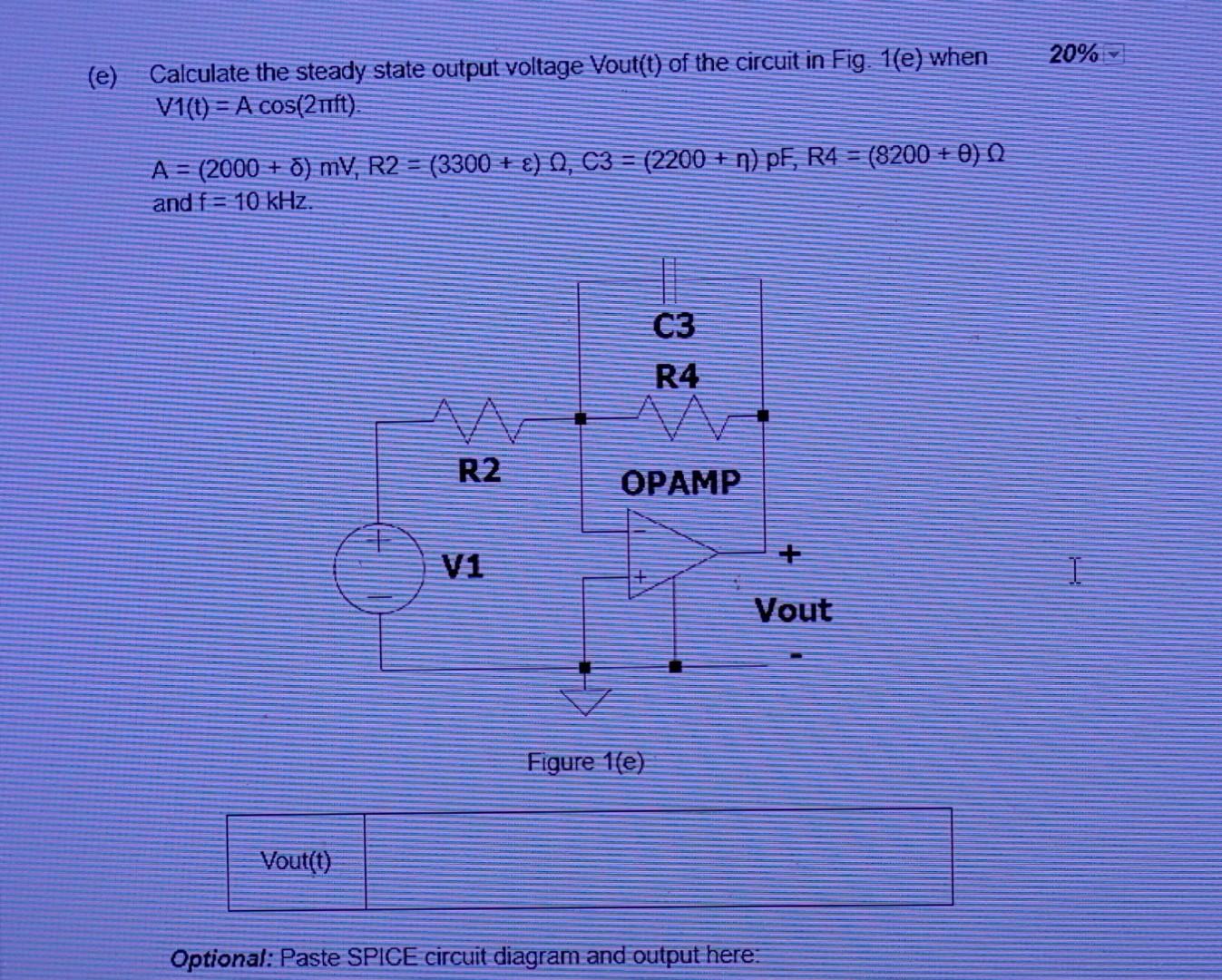

20% (e) Calculate the steady state output voltage Vout(t) of the circuit in Fig. 1(e) when V1(t) = A cos(2miſt). + A = (2000 + 7) mV, R2 = (3300 + €) 0, C3 = (2200 + n) pF, R4 = (8200 + 0) and f = 10 kHz. C3 R4 R2 OPAMP + I Vout Figure 1(e) Vout(t) Optional: Paste SPICE circuit diagram and output here:
