D 10.5 The amplifier in Fig. P10.5 is biased to operate at 8. = 2 mA/V. Neglectro (a) Determine the value of R, that res

Post by answerhappygod »

D 10 5 The Amplifier In Fig P10 5 Is Biased To Operate At 8 2 Ma V Neglectro A Determine The Value Of R That Res 1
D 10 5 The Amplifier In Fig P10 5 Is Biased To Operate At 8 2 Ma V Neglectro A Determine The Value Of R That Res 1 (55.23 KiB) Viewed 33 times

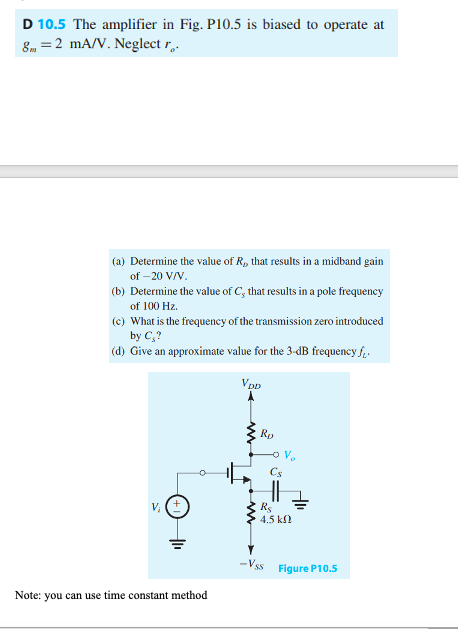

D 10.5 The amplifier in Fig. P10.5 is biased to operate at 8. = 2 mA/V. Neglectro (a) Determine the value of R, that results in a midband gain of -20 V/V. (b) Determine the value of C, that results in a pole frequency of 100 Hz. (c) What is the frequency of the transmission zero introduced by C? (d) Give an approximate value for the 3-dB frequency de VOD R V 11 V RS 4.5 kg = -Vs Figure P10.5 Note: you can use time constant method
