Rd .tran 2m ;.ac dec 100 1E-1 159 .param vth 1.5 Сс HE 10u VDD M1 R1 in M BS170 18 47k RL 1 Meg Vsig SINE(6 0.01 10k) AC
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Rd .tran 2m ;.ac dec 100 1E-1 159 .param vth 1.5 Сс HE 10u VDD M1 R1 in M BS170 18 47k RL 1 Meg Vsig SINE(6 0.01 10k) AC

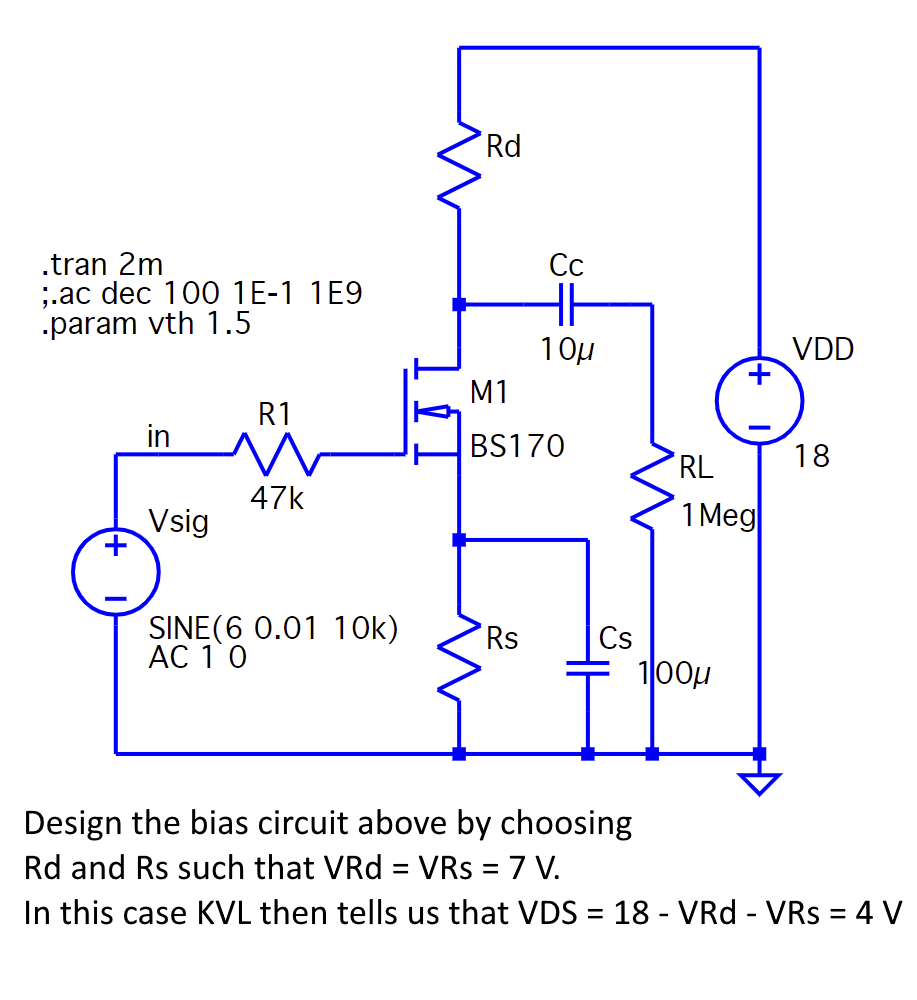

Rd .tran 2m ;.ac dec 100 1E-1 159 .param vth 1.5 Сс HE 10u VDD M1 R1 in M BS170 18 47k RL 1 Meg Vsig SINE(6 0.01 10k) AC 10 Rs Cs 1100u Design the bias circuit above by choosing Rd and Rs such that VRd = VRs = 7 V. In this case KVL then tells us that VDS = 18 - VRd - VRs = 4 V = = =
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
