Write the node-voltage matrix equations for the circuit in Fig. 3.27 by inspection. 2Α 1 Ω υ U2 8Ω U3 8 Ω 5Ω Λ- V4 Λ 3Α

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Write the node-voltage matrix equations for the circuit in Fig. 3.27 by inspection. 2Α 1 Ω υ U2 8Ω U3 8 Ω 5Ω Λ- V4 Λ 3Α

Post by answerhappygod »

1
1 (76.7 KiB) Viewed 23 times

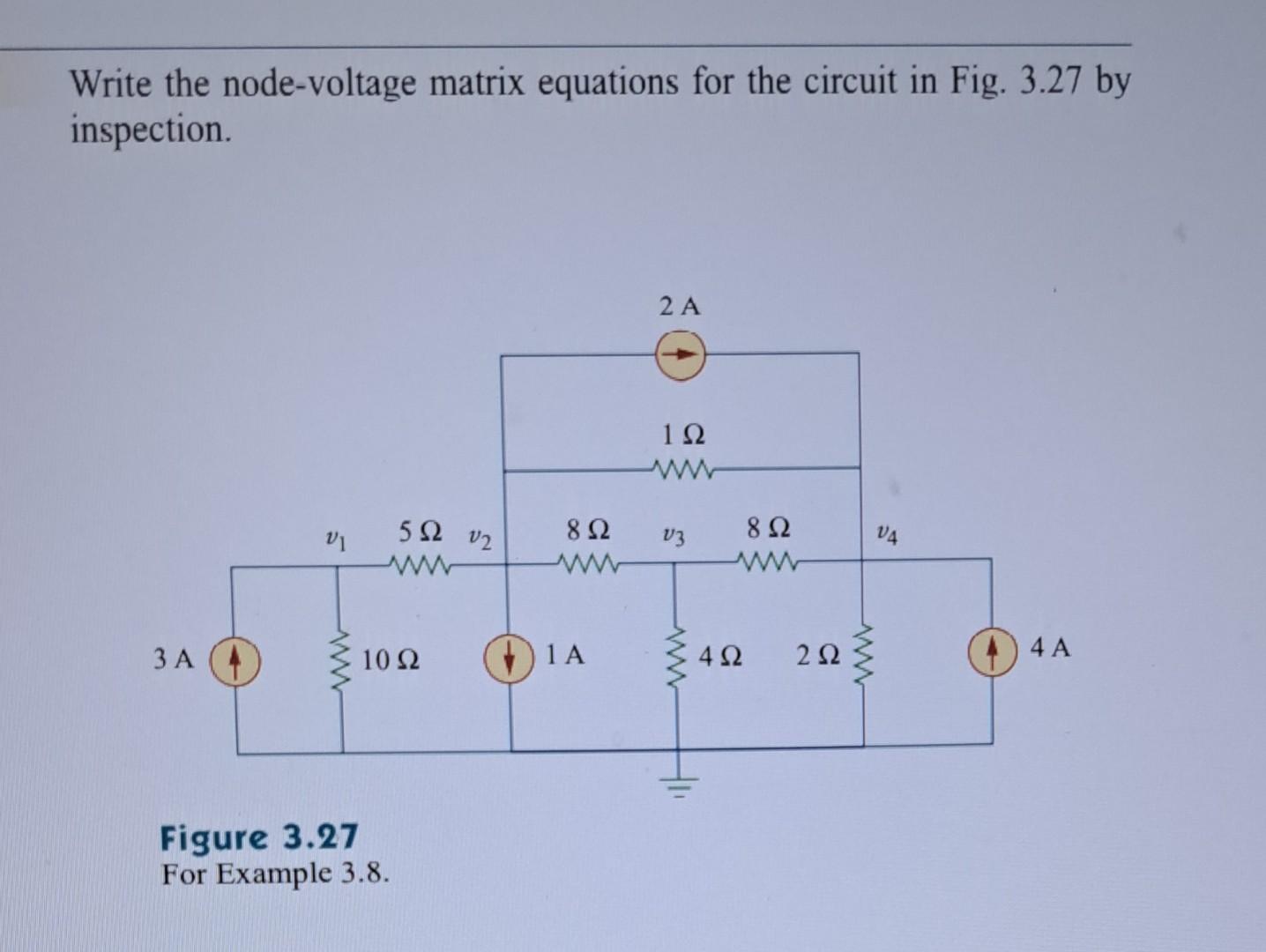

Write the node-voltage matrix equations for the circuit in Fig. 3.27 by inspection. 2Α 1 Ω υ U2 8Ω U3 8 Ω 5Ω Λ- V4 Λ 3Α 10Ω ΛΜ 1A 4Ω 2 Ω 4A -Αν Figure 3.27 For Example 3.8.
