***Use LTSpice to solve this question***
***Use LTSpice to solve this question***
***Use LTSpice to solve this question***
Enter the answer along to 3 significant figures. include screen dumps of each circuit schematic, natlist and simulation results
Use Ltspice To Solve This Question Use Ltspice To Solve This Question Use Ltspice To Solve This Question 1 (129.04 KiB) Viewed 19 times

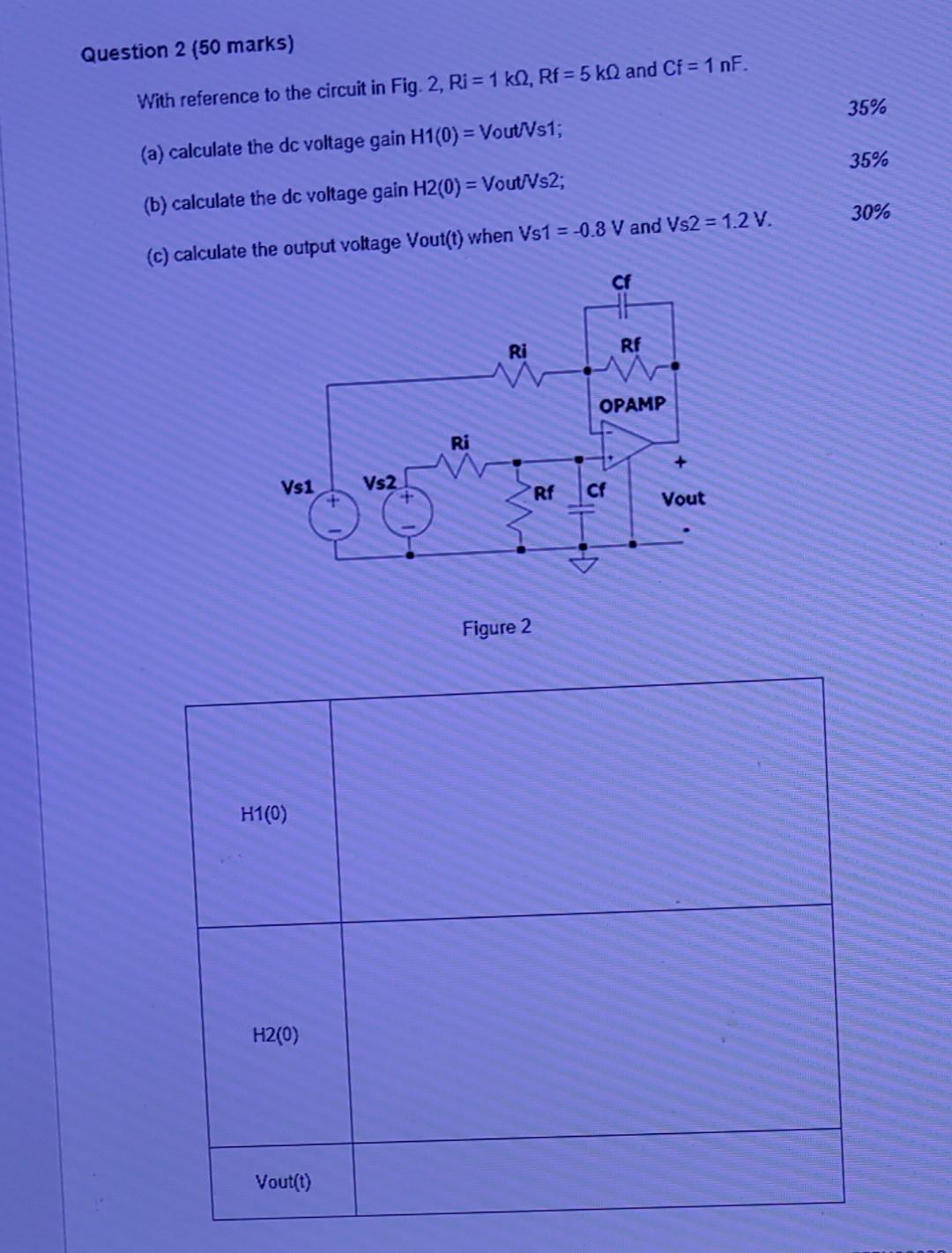

Question 2 (50 marks) With reference to the circuit in Fig. 2, Ri = 1 kN, Rf = 5 kN and Cf = 1 nF. 35% (a) calculate the dc voltage gain H1(0) = Vout/Vs1; 35% (b) calculate the dc voltage gain H2(0) = Vout/s2; 30% (c) calculate the output voltage Vout(t) when Vs1 = -0.8 V and Vs2 = 1.2 V. Cf Ri RF OPAMP Ri + Vsi Vs2 Rf c Vout Figure 2 H1(0) H2(0) Vout(t)
