A3 - 0,4-wire, symmetrical supply with a phase sequence of abc supplies an unbalanced, Y- connected load of the followin

Post by answerhappygod »

A3 0 4 Wire Symmetrical Supply With A Phase Sequence Of Abc Supplies An Unbalanced Y Connected Load Of The Followin 1
A3 0 4 Wire Symmetrical Supply With A Phase Sequence Of Abc Supplies An Unbalanced Y Connected Load Of The Followin 1 (22.88 KiB) Viewed 24 times

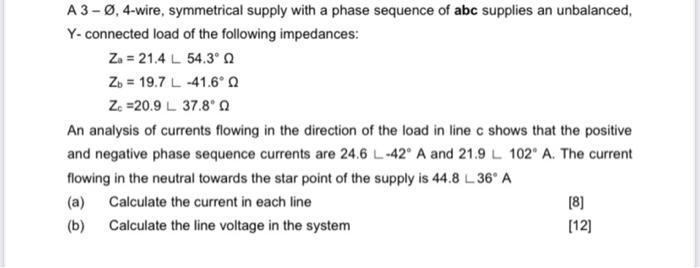

A3 - 0,4-wire, symmetrical supply with a phase sequence of abc supplies an unbalanced, Y- connected load of the following impedances: Za = 21.4 L 54.32 Z. = 19.7 L -41.60 Z =20.9 L 37.80 An analysis of currents flowing in the direction of the load in line c shows that the positive and negative phase sequence currents are 24.6 L-42 A and 21.9 L 102 A. The current flowing in the neutral towards the star point of the supply is 44.8 L 36° A (a) Calculate the current in each line [8] (b) Calculate the line voltage in the system [12]
