4. (10 points) For the circuit below, assume the circuit reaches steady state before t = 0. Find the values requested, a

[answerhappygod]

4 10 Points For The Circuit Below Assume The Circuit Reaches Steady State Before T 0 Find The Values Requested A 1 (57.98 KiB) Viewed 30 times

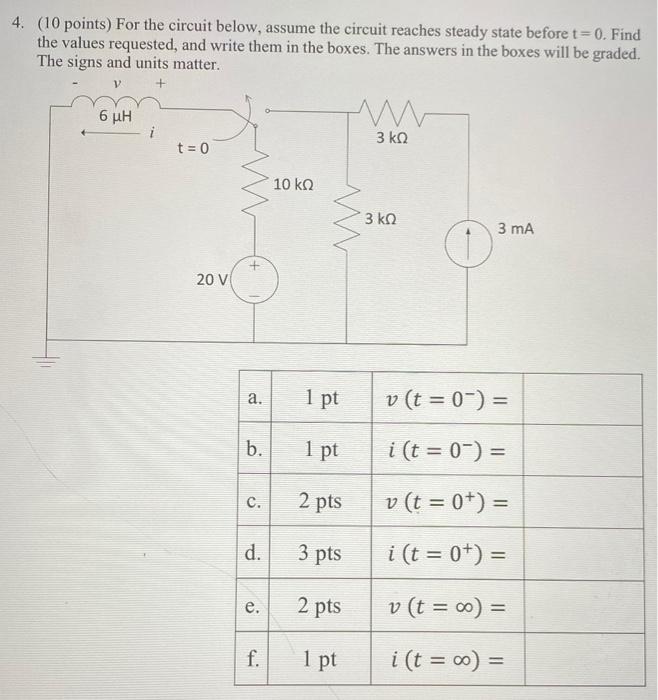

4. (10 points) For the circuit below, assume the circuit reaches steady state before t = 0. Find the values requested, and write them in the boxes. The answers in the boxes will be graded. The signs and units matter. v + 6 μΗ 3 k2 t = 0 10 k 2 3 ΚΩ 3 mA + 20 V . a. 1 pt v (t = 0-) = b. 1 pt i(t = 0)) = c. 2 pts v (t = 0+) = d. 3 pts iſt = 0+) = = e. 2 pts v (t = 0) = f. 1 pt i (t = 0) =
