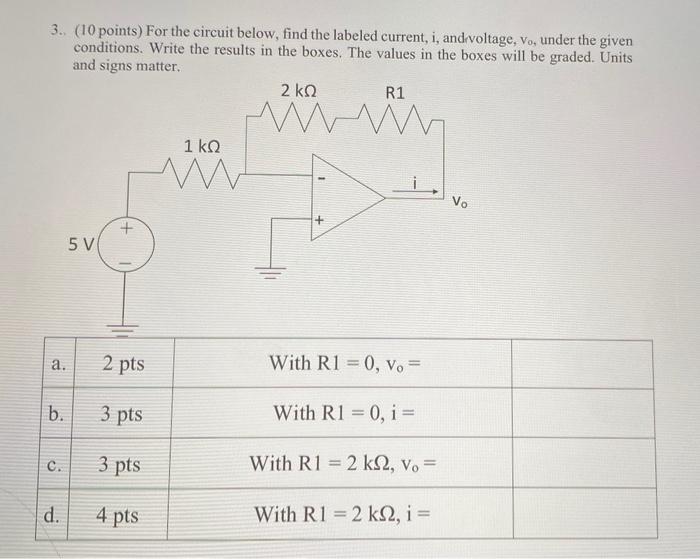

3. (10 points) For the circuit below, find the labeled current, i, and voltage, Vo, under the given conditions. Write th

[answerhappygod]

3 10 Points For The Circuit Below Find The Labeled Current I And Voltage Vo Under The Given Conditions Write Th 1 (47.93 KiB) Viewed 25 times

3. (10 points) For the circuit below, find the labeled current, i, and voltage, Vo, under the given conditions. Write the results in the boxes. The values in the boxes will be graded. Units and signs matter 2 ko R1 1 ΚΩ M Vo + + 5 V . a. 2 pts With R1 = 0, v. = b. 3 pts With R1 = 0, i = c. 3 pts With R1 = 2 k22, v. = d. 4 pts With R1 = 2 k2, i =
