- 2 10 Points In The Circuit Below Use Nodal Analysis To Find The Node Voltage V3 Under The Given Conditions And Wr 1 (53.82 KiB) Viewed 30 times
2. (10 points) In the circuit below, use nodal analysis to find the node voltage, V3, under the given conditions, and wr
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. (10 points) In the circuit below, use nodal analysis to find the node voltage, V3, under the given conditions, and wr

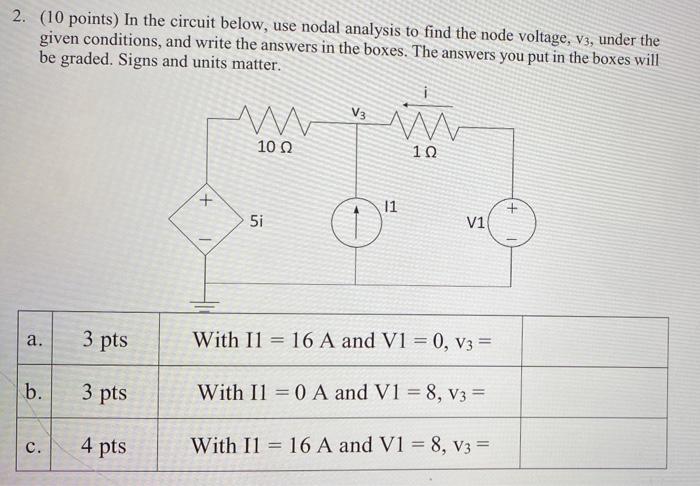

2. (10 points) In the circuit below, use nodal analysis to find the node voltage, V3, under the given conditions, and write the answers in the boxes. The answers you put in the boxes will be graded. Signs and units matter. V3 10 Ω 1Ω + 11 5i v1 a a. 3 pts With I1 = 16 A and V1 = 0, V3 = b. 3 pts With I1 = 0 A and V1 = 8, V3 = c. 4 pts With I1 = 16 A and V1 = 8, V3 =
