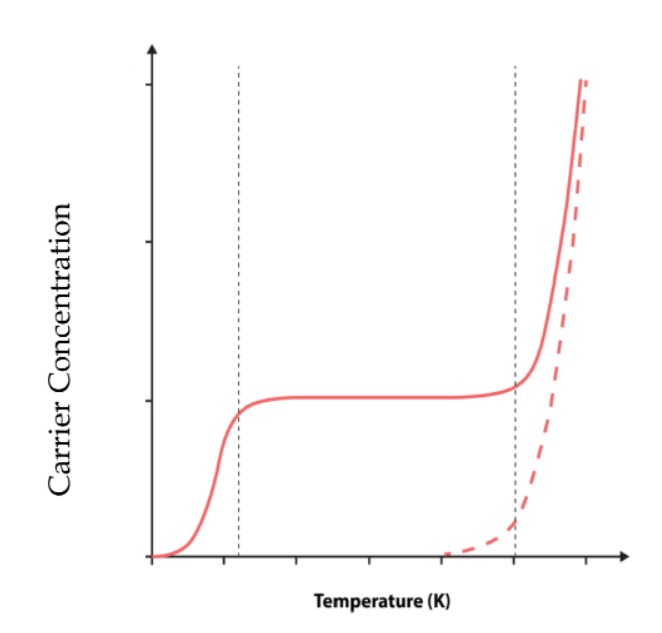

The plot below shows carrier concentration as a function of
temperature for extrinsic p-type Si and intrinsic Si. Label each
curve. The following options are available: intrinsic
Silicon, extrinsic p-type Silicon, neither.
The Plot Below Shows Carrier Concentration As A Function Of Temperature For Extrinsic P Type Si And Intrinsic Si Label 1 (54.96 KiB) Viewed 21 times
Carrier Concentration Temperature (K)
