= V.(s) Q6. Find the transfer function H(S) = Sketch the Bode plots for the case Ri= 1 k1, R2 = Vs() 100 kN, C1 = C2 = 1

Post by answerhappygod »

V S Q6 Find The Transfer Function H S Sketch The Bode Plots For The Case Ri 1 K1 R2 Vs 100 Kn C1 C2 1 1
V S Q6 Find The Transfer Function H S Sketch The Bode Plots For The Case Ri 1 K1 R2 Vs 100 Kn C1 C2 1 1 (24.55 KiB) Viewed 21 times

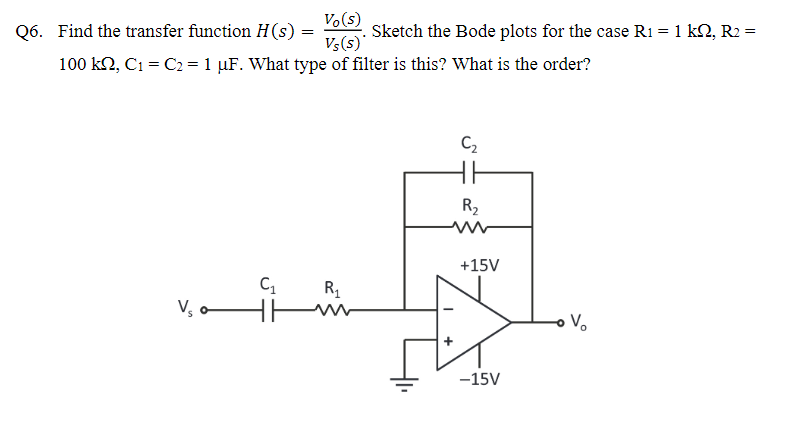

= V.(s) Q6. Find the transfer function H(S) = Sketch the Bode plots for the case Ri= 1 k1, R2 = Vs() 100 kN, C1 = C2 = 1 uF. What type of filter is this? What is the order? С. HE R2 +15V R1 Vio Ci HA V. -15V
