Please solve this question correctly. Show all your work and
make sure your handwriting is readable.

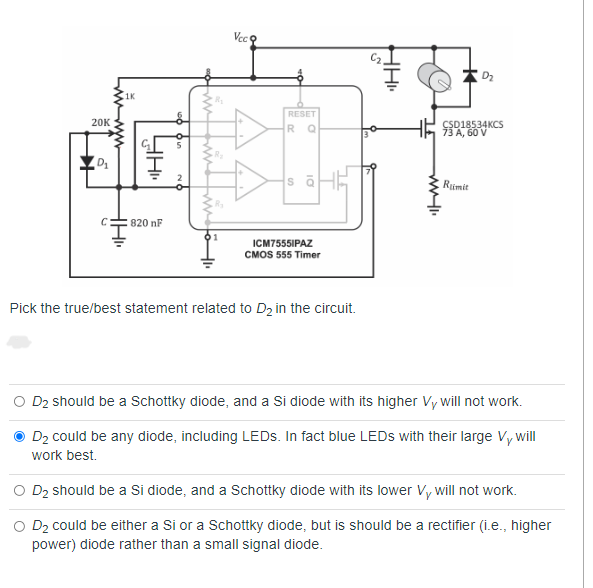

Vece 1K Layer 20K no on RESET IR Q CSD18534KCS 73 A, 60 V w w ON Riimit C 820 nF HHI ICM75551PAZ CMOS 555 Timer Pick the true/best statement related to D2 in the circuit. O D2 should be a Schottky diode, and a Si diode with its higher Vy will not work. D2 could be any diode, including LEDs. In fact blue LEDs with their large V, will work best O D2 should be a Si diode, and a Schottky diode with its lower Vy will not work. O D2 could be either a si or a Schottky diode, but is should be a rectifier (i.e., higher power) diode rather than a small signal diode.
