Q5 Below Is An E Nfa That Models A New Vending Machine Proposed At Legon Sul 91 0 Start Qo 93 94 W 92 1 A Determine 1 (59.96 KiB) Viewed 25 times
Its urgent

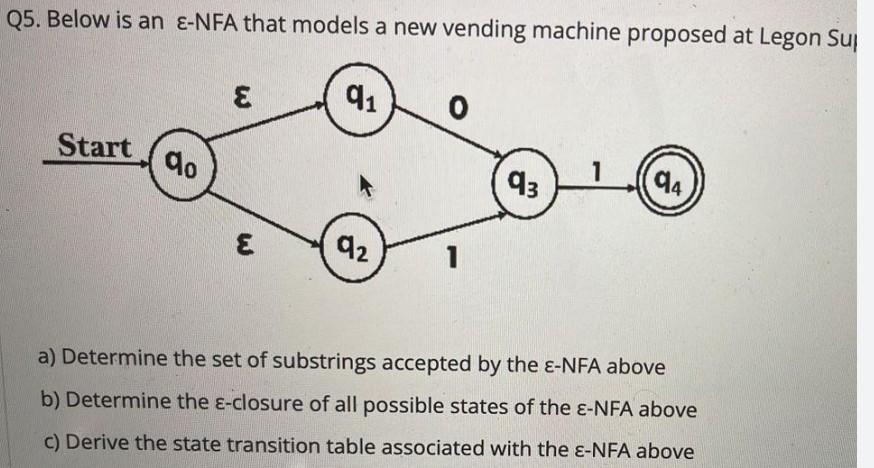

Q5. Below is an e-NFA that models a new vending machine proposed at Legon Sul € 91 0 Start qo 93 94 w 92 1 a) Determine the set of substrings accepted by the ε-NFA above b) Determine the ε-closure of all possible states of the ε-NFA above c) Derive the state transition table associated with the ε-NFA above
