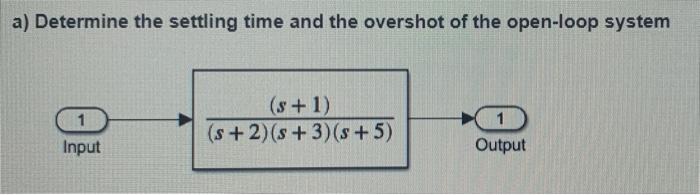

- A Determine The Settling Time And The Overshot Of The Open Loop System 1 Input S 1 S 2 8 3 S 5 Output B 1 (21.95 KiB) Viewed 21 times
- A Determine The Settling Time And The Overshot Of The Open Loop System 1 Input S 1 S 2 8 3 S 5 Output B 2 (22.97 KiB) Viewed 21 times

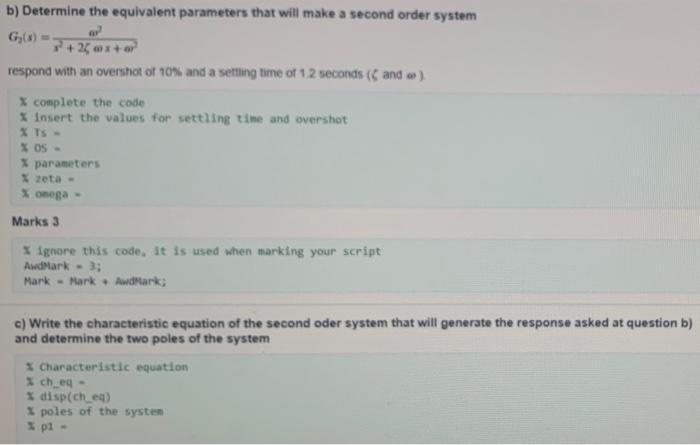

b) Determine the equivalent parameters that will make a second order system a Gy(x) = +24+ respond with an overshot of 10% and a setting time of 12 seconds and c). * complete the code * Insert the values for setting time and overshot X TS- X 05 - * parameters zeta - ega - Marks 3 * ignore this code, it is used when marking your script Adark - 3; Mark - Mark Adark; c) Write the characteristic equation of the second oder system that will generate the response asked at question b) and determine the two poles of the system * Characteristic equation Ich_eq - * disp(ch_ea) poles of the system pl -
