4) A simply supported reinforced concrete beam, 240 mm wide, carries inclusive loads as shown in the figure below. 100 K

Post by answerhappygod »

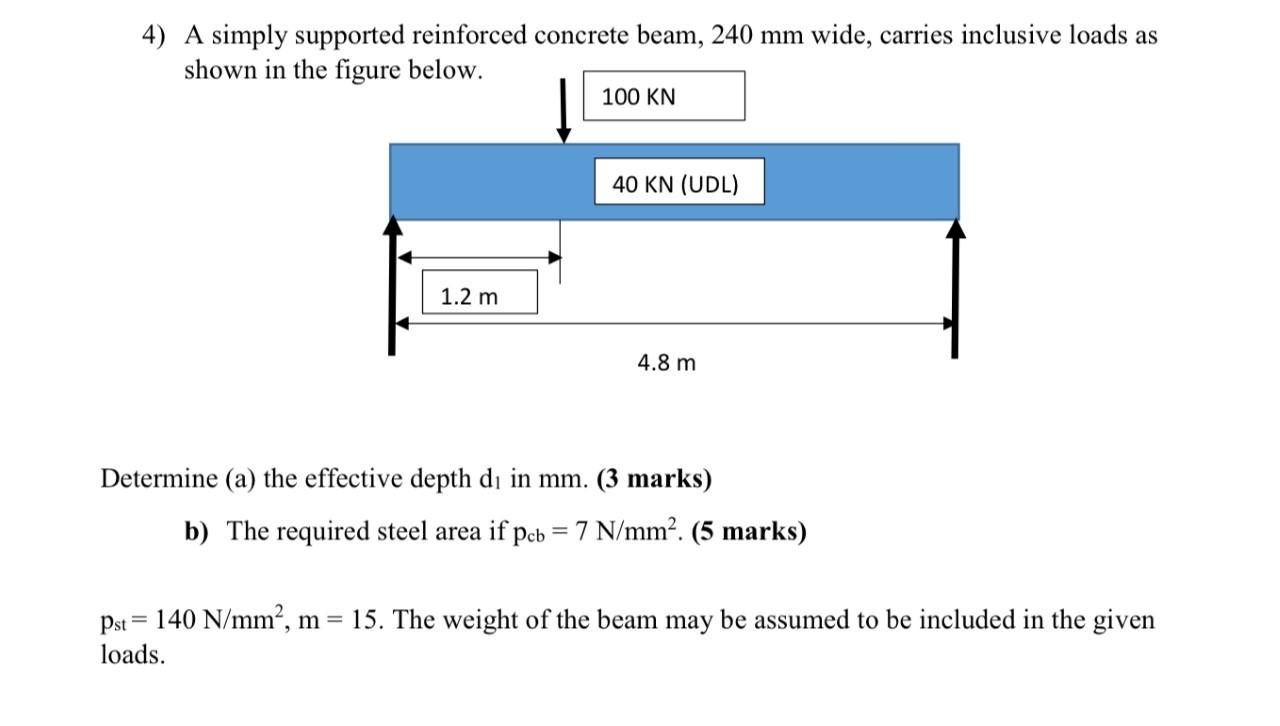

4 A Simply Supported Reinforced Concrete Beam 240 Mm Wide Carries Inclusive Loads As Shown In The Figure Below 100 K 1
4 A Simply Supported Reinforced Concrete Beam 240 Mm Wide Carries Inclusive Loads As Shown In The Figure Below 100 K 1 (54.99 KiB) Viewed 39 times
4) A simply supported reinforced concrete beam, 240 mm wide, carries inclusive loads as shown in the figure below. 100 KN 40 KN (UDL) 1.2 m 4.8 m Determine (a) the effective depth dị in mm. (3 marks) b) The required steel area if pcb = 7 N/mm². (5 marks) = Pst = 140 N/mm², m= 15. The weight of the beam may be assumed to be included in the given loads.
