A) Estimate the reactions on the links of the structure.
B) Estimate the forces and moments that occur at the ends of
each bar.
C)Draw the free body diagrams with the stresses on each bar in
the longitudinal direction and perpendicular to the bars.

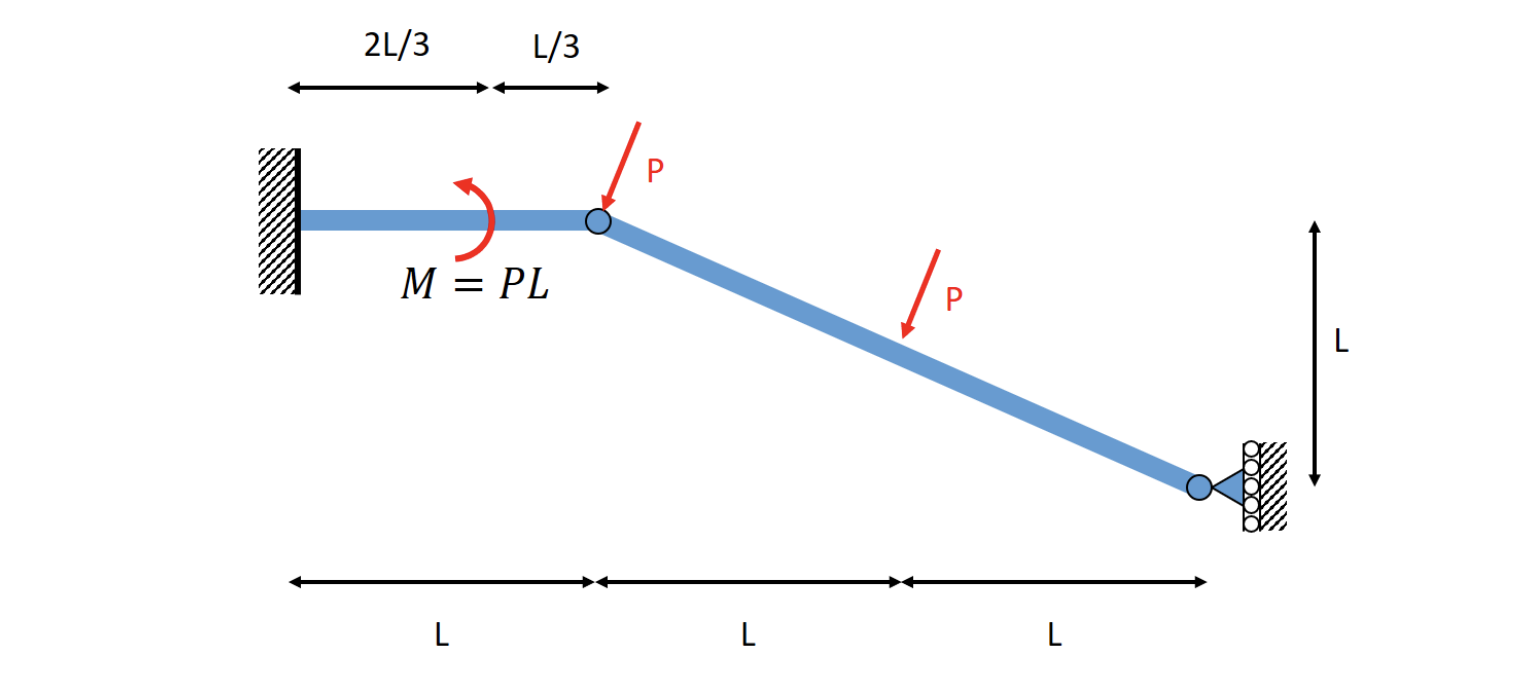

(Structure of 2 bars subjected to efforts. Both forces P are
perpendicular to the diagonal bar (one above the ball
joint and the other in the middle of the bar), while the
moment is applied on the horizontal bar.)
A Estimate The Reactions On The Links Of The Structure B Estimate The Forces And Moments That Occur At The Ends Of Ea 1 (60.65 KiB) Viewed 28 times
21/3 L/3 Р 1 M= PL L L L L
