Determine the reactions at supports and draw the internal force diagrams of the moment resistant frame with the displace

Post by answerhappygod »

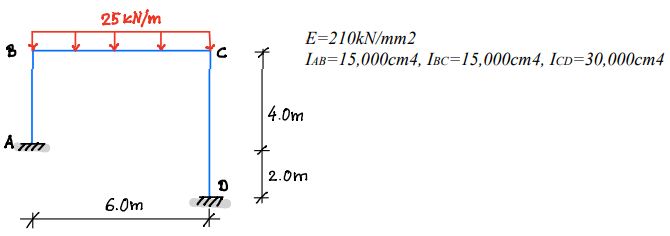

Determine the reactions at supports and draw the internal force
diagrams of the moment resistant frame with the displacement
methods using Slope-Deflection Equations.
Determine The Reactions At Supports And Draw The Internal Force Diagrams Of The Moment Resistant Frame With The Displace 1
Determine The Reactions At Supports And Draw The Internal Force Diagrams Of The Moment Resistant Frame With The Displace 1 (18.58 KiB) Viewed 24 times
25 kN/m B с C E=210kN/mm2 LAB=15,000cm4, Ibc=15,000cm4, IcD=30,000cm4 4.0m ATT 2.0m D 1 6.Om +
