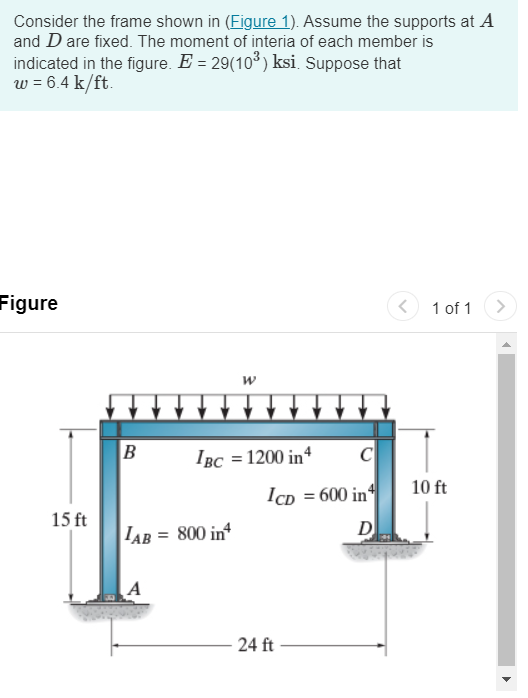

Consider the frame shown in (Figure 1). Assume the supports at A and D are fixed. The moment of interia of each member is indicated in the figure. E = 29(103) ksi. Suppose that w = 6.4 k/ft. Figure < 1 of 1 W B IBC = 1200 in 4 с 10 ft 15 ft IcD = 600 in D LAB = 800 in A 24 ft
Part A Determine the moment MAB acting on member AB at A measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. IVO ANO f vec ? MAB = k ft Submit Request Answer Part B Determine the moment MBA acting on member AB at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. IVO AE f vec ? MBA = k.ft Submit Request Answer
Part C Determine the moment MBC acting on member BC at B measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. DE IVALO If vec ? MBC = k. ft Submit Request Answer Part D Determine the moment MCB acting on member BC at C measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. ΙπΙ ΑΣΦ It vec ? MCB = kft Submit Request Answer

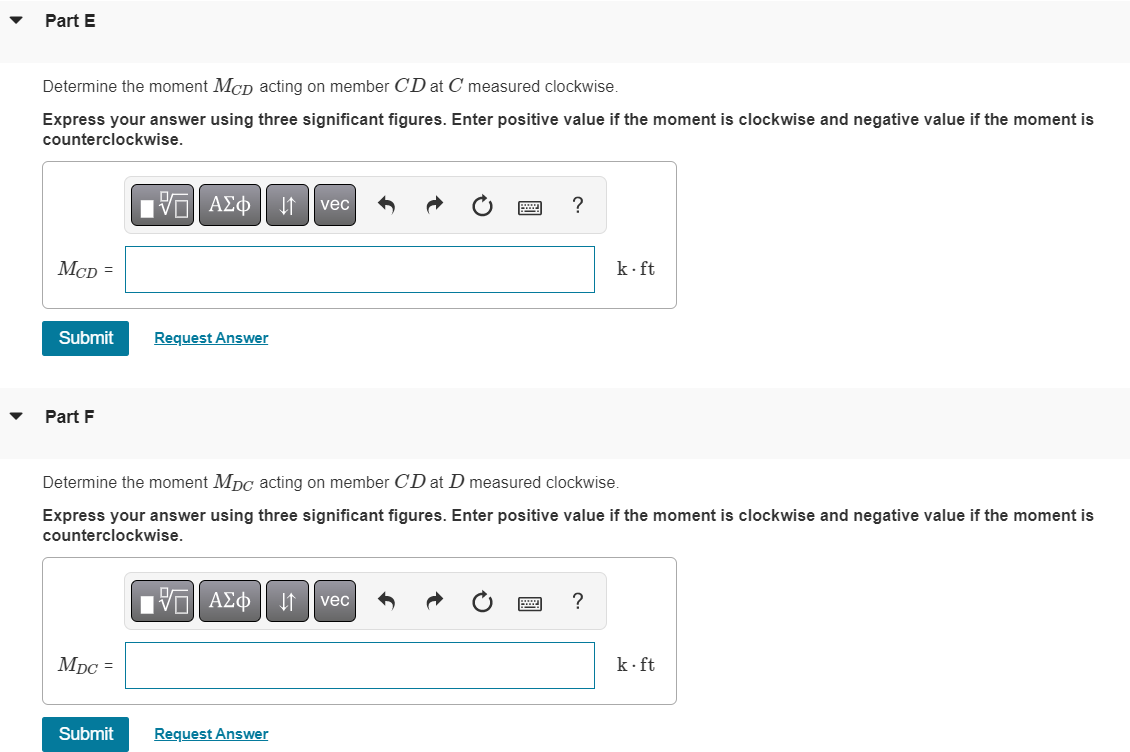

Part E Determine the moment McD acting on member CD at C measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. IVALO If vec ? McD = k. ft Submit Request Answer Part F Determine the moment Mpc acting on member CD at D measured clockwise. Express your answer using three significant figures. Enter positive value if the moment is clockwise and negative value if the moment is counterclockwise. VALO If vec ? MDC = k.ft Submit Request Answer
