Problem 2. (25 points) The 9-m long indeterminate beam shown below supports a uniformly distributed load of 32 kN/m (dow

Post by answerhappygod »

Problem 2 25 Points The 9 M Long Indeterminate Beam Shown Below Supports A Uniformly Distributed Load Of 32 Kn M Dow 1
Problem 2 25 Points The 9 M Long Indeterminate Beam Shown Below Supports A Uniformly Distributed Load Of 32 Kn M Dow 1 (18.1 KiB) Viewed 23 times

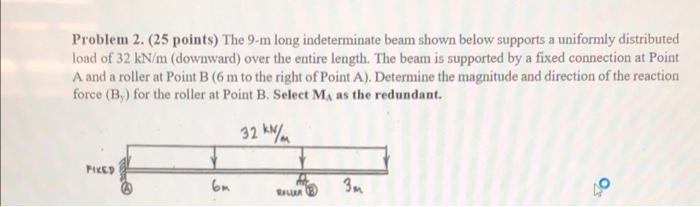

Problem 2. (25 points) The 9-m long indeterminate beam shown below supports a uniformly distributed load of 32 kN/m (downward) over the entire length. The beam is supported by a fixed connection at Point A and a roller at Point B (6 m to the right of Point A). Determine the magnitude and direction of the reaction force (B) for the roller at Point B. Select M, as the redundant. 32 kN/m FIRES 6m 3m BLUR 2
