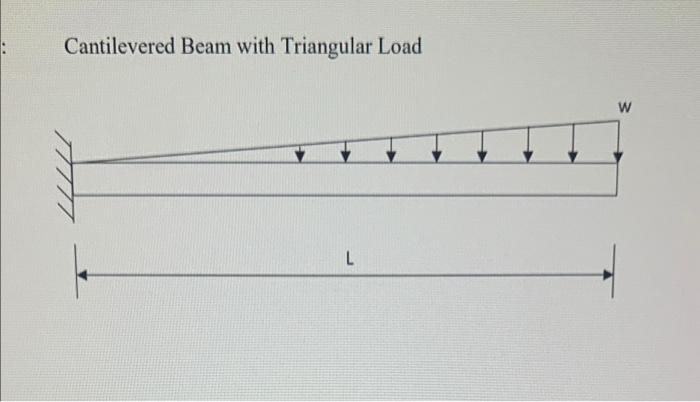

Cantilevered Beam with Triangular Load w L

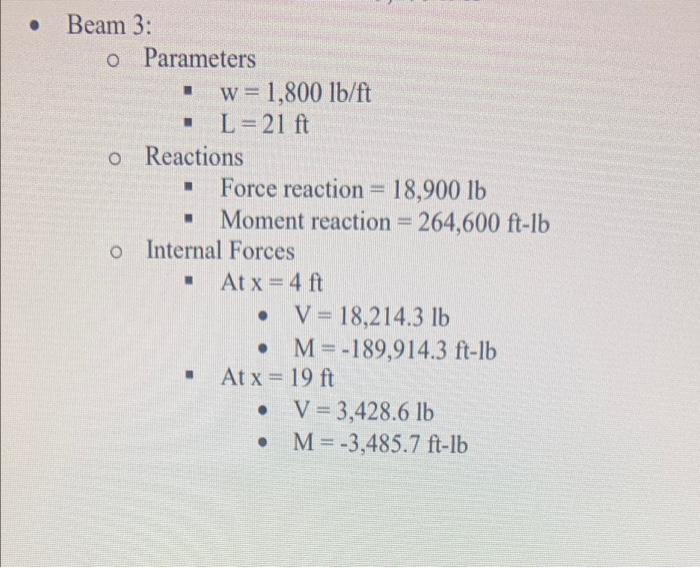

Beam 3: o Parameters w= 1,800 lb/ft L = 21 ft o Reactions Force reaction = 18,900 lb Moment reaction = 264,600 ft-lb o Internal Forces At x= 4 ft • V = 18,214.3 lb M=-189,914.3 ft-lb . At x= 19 ft • V = 3,428.6 lb • M= -3,485.7 ft-lb
