1. (30 points) A six-lane freeway segment has 3 lanes in each direction and a peak hourly volume of 4500 vph in each dir

[answerhappygod]

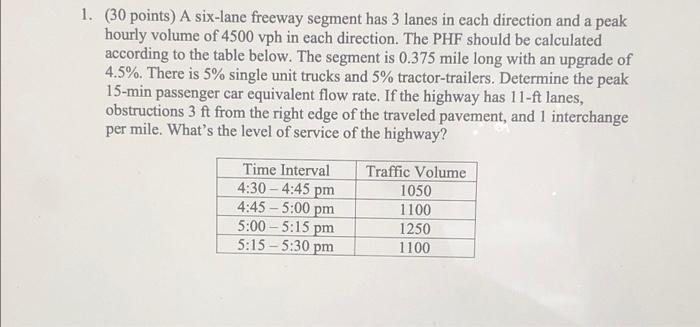

1 30 Points A Six Lane Freeway Segment Has 3 Lanes In Each Direction And A Peak Hourly Volume Of 4500 Vph In Each Dir 1 (31.17 KiB) Viewed 22 times

1. (30 points) A six-lane freeway segment has 3 lanes in each direction and a peak hourly volume of 4500 vph in each direction. The PHF should be calculated according to the table below. The segment is 0.375 mile long with an upgrade of 4.5%. There is 5% single unit trucks and 5% tractor-trailers. Determine the peak 15-min passenger car equivalent flow rate. If the highway has 11-ft lanes, obstructions 3 ft from the right edge of the traveled pavement, and 1 interchange per mile. What's the level of service of the highway? Time Interval 4:30 - 4:45 pm 4:45 - 5:00 pm 5:00 – 5:15 pm 5:15 - 5:30 pm Traffic Volume 1050 1100 1250 1100
