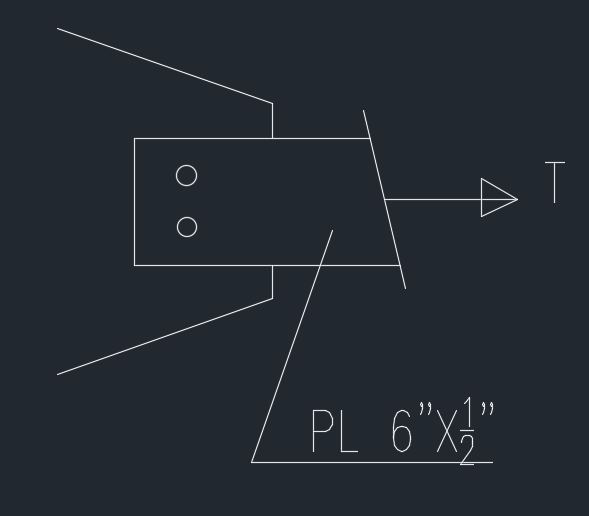

A 1/2 in. x 6 in. steel plate of A 36 steel is used
as a tension member. It is connected to a gusset plate with
two 7/8-inch-diameter bolts as shown below.
U=0.9.
A 1 2 In X 6 In Steel Plate Of A 36 Steel Is Used As A Tension Member It Is Connected To A Gusset Plate With Two 7 1 (17.05 KiB) Viewed 30 times
1. What is the yield tension capacity of the plate in
(kip)?
78.3
93.96
97.2
58.32
2. What is the rupture tension capacity of the plate in (kip)?
97.2
93.96
58.32
78.3
Т. / PL 6"x}"
