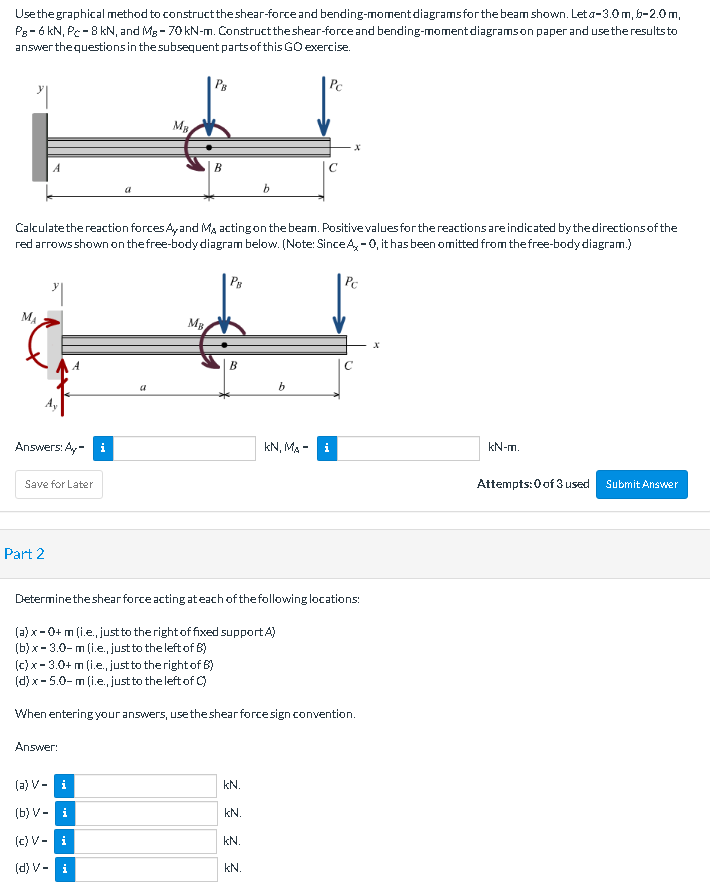

Use The Graphical Method To Construct The Shear Force And Bending Moment Diagrams For The Beam Shown Leta 3 0m 6 2 0m 1 (36.02 KiB) Viewed 31 times
Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Leta-3.0m, 6-2.0m, Ps-6 kN, Pe-8 kN, and M3 - 70 kN-m. Construct the shear-force and bending-moment diagramson paper and use the results to answer the questions in the subsequent parts of this GO exercise. PX Pc ME . B b Calculate the reaction forces and Me actingon the beam. Positive values for the reactions are indicated by thedirections of the red arrows shown on the free-body diagram below. (Note: Since 4,-0, it has been omitted from the free-body diagram.) Ps PC MA M x 4 B с u b Answers: Ay- i KN, MA- KN-m. Save for Later Attempts:0 of 3 used Submit Answer Part 2 Determine the shear force acting at each of the following locations: m (a)x -0+ m (i.e., just to the right of fixed supportA) (b) x-3.0-mli.e., just to the left of B) (c) x-3.0+ m (i.e., just to the right of B) (d) x-5.0-mli.e., just to the left of 9 When entering your answers, use the shear force sign convention. Answer: (a) V- i (b) V- i § § § (c) V- i (d) V- i KN.
Part 3 Determine the bending moment acting ateach of the following locations: (a) x-O+ m (i.e., just to the right of fixed support) (b)x-3.0-mli.e., just to the left of B) (c) x-3.0+ m (ie, just to the right of B) (d) x - 5.0m When entering your answers, use the bending moment sign convention. Answers: (a) M- i kN-m. (b) M- i kN-m. (c) M- i kN-m. (d) M- i kN-m.
