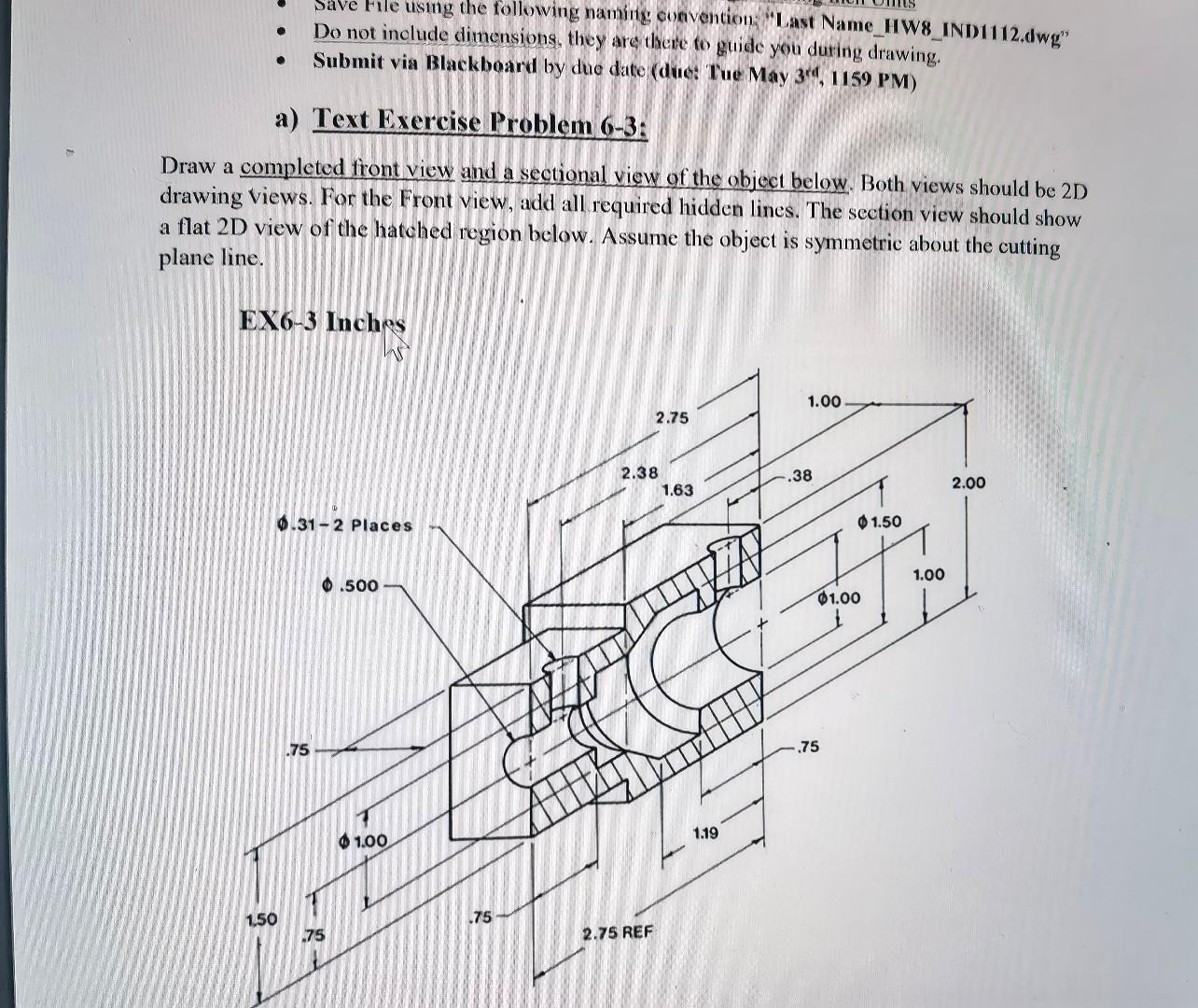

MUS Save hile using the following naming conventions Last Name_HIW8_IND1112.dwg" Do not include dimensions, they are there to guide you during drawing. Submit via Blackboard by due date (due: Tue May 3, 1159 PM) . a) Text Exercise Problem 6-3: Draw a completed front view and a sectional view of the object below. Both views should be 2D drawing Views. For the Front view, add all required hidden lines. The section view should show a flat 2D view of the hatched region below. Assume the object is symmetric about the cutting plane line. EX6-3 Inches IAS 1.00 2.75 2.38 1.63 .38 2.00 0.31 -2 Places 1.50 1.00 0.500 01.00 .75 ,75 1.00 1.19 1.50 175 .75 2.75 REF
