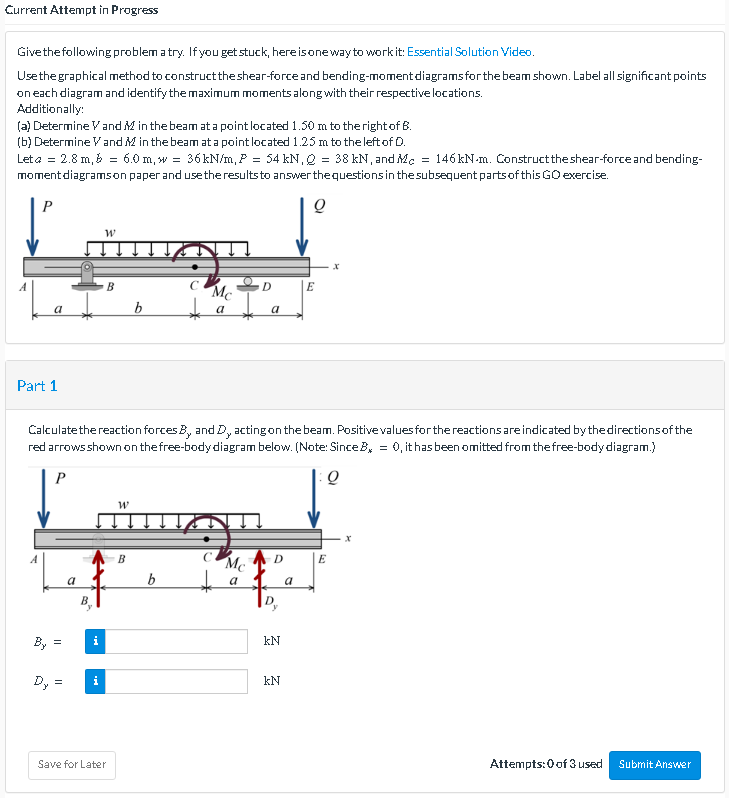

Current Attempt in Progress Give the following problem a try. If you get stuck, here is one way to work it: Essential Solution Video. Use the graphical method to construct the shear-force and bending-moment diagrams for the beam shown. Label all significant points on each diagram and identify the maximum moments along with their respective locations. Additionally: (a) Determine Vand M in the beam at a point located 1.50 m to the right of B. (b) Determine Vand M in the beam at a point located 1.25 m to the left of D. Leta = 2.8 m, b = 6.0m,w = 36 kN/m, P = 54 kN, Q = 38 kN, and Mc = 146 kN-m. Construct the shear-force and bending- moment diagramson paper and use the results to answer the questions in the subsequent parts of this GO exercise. P W B D E b Mc + a a Part 1 Calculate the reaction forces B, and D, acting on the beam. Positive values for the reactions are indicated by the directions of the red arrows shown on the free-body diagram below. (Note: SinceBx = 0, it has been omitted from thefree-body diagram.) P Q W N x B MAD E a b a a D By = KN D Dy = = kN Save for Later Attempts: 0 of 3 used Submit Answer
Part 2 Determine the shear force acting at each of the following locations: (a) x = 2.8 - m (ie, just to the left of support B) (b) x = 2.8 + m (i.e., just to the right of support B) (c) x = 11.6 - mlie., just to the left of support) (d) x = 11.6 + mlie., just to the right of support) When entering your answers, use the shear-force sign convention. (a) V= i KN (b) V = kN (c) V = KN (d) V = kN Save for Later Attempts:0 of 3 used Submit Answer Part 3 Determine the bending moment acting at each of the following locations: - m (a) x = 2.8m (i.e., at support B) (b) x = 8.8 – m(i.e., just to the left of point) (c) x = 8.8 + n(i.e., just to the right of point (d) x = 11.6m (i.e., at support) When entering your answers, use the bending moment sign convention. (a) M = i kN- (b) M = i kN-I (c) M = i kN-m (d) M = i kN-TO
Part 4 Find the location x and the corresponding bending moment M attheone point between Band Dat which the shear force equals zero. Use the correct sign convention for the bending moment. X= i ILL M = i kN-m Save for Later Attempts:0 of 3 used Submit Answer Part 5 Consider the entire beam and determinethe maximum positive bending moment and the location at which it occurs. Use the bending moment sign convention. M = i kN-m Save for Later Attempts:0 of 3 used Submit Answer Part 6 Consider the entire beam and determine the negative bending moment with the largest absolute value. Use the bending moment sign convention, so enter a negative value. M = i KN. Save for Later Attempts:0 of 3 used Submit Answer
Part 7 (a) Determine Vand M in the beam at a point located 1.50 m to the right of B. (b) Determine Vand M in the beam at a point located 1.25 m to the left of D. (a) V = IN M = i kN. (b} V = KN M = kN- Save for Later Attempts: 0 of 3 used Submit Answer
