For the given state of stress, determine a) principal normal stresses (o1 and 02) the rotation angle of the principal pl

[answerhappygod]

For The Given State Of Stress Determine A Principal Normal Stresses O1 And 02 The Rotation Angle Of The Principal Pl 1 (16.91 KiB) Viewed 24 times

For The Given State Of Stress Determine A Principal Normal Stresses O1 And 02 The Rotation Angle Of The Principal Pl 2 (35.1 KiB) Viewed 24 times

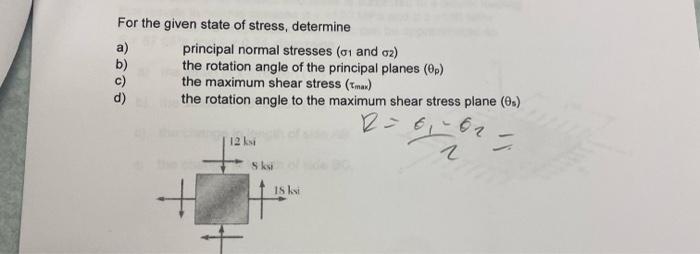

For the given state of stress, determine a) principal normal stresses (o1 and 02) the rotation angle of the principal planes (0) the maximum shear stress (max) the rotation angle to the maximum shear stress plane (0) 12 ks n Ski ISKS +

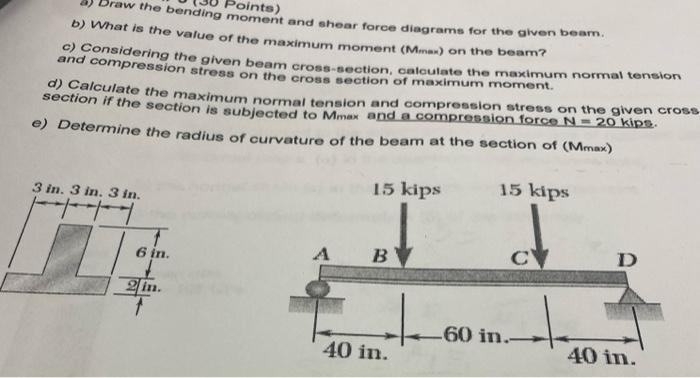

Braw the bending moment and shear force diagrams for the given beam. b) What is the value of the maximum moment (Mman) on the beam? c) Considering the given beam cross-section, calculate the maximum normal tension and compression stress on the cross section of maximum moment. .) Calculate the maximum normal tension and compression stress on the given cross section if the section is subjected to Mmax and a compression force N = 20 kipe. e) Determine the radius of curvature of the beam at the section of (Mmax) 3 in. 3 in. 3 in. 15 kips 15 kips propon 셔 6 in. BV D -60 in. 40 in. 40 in.
