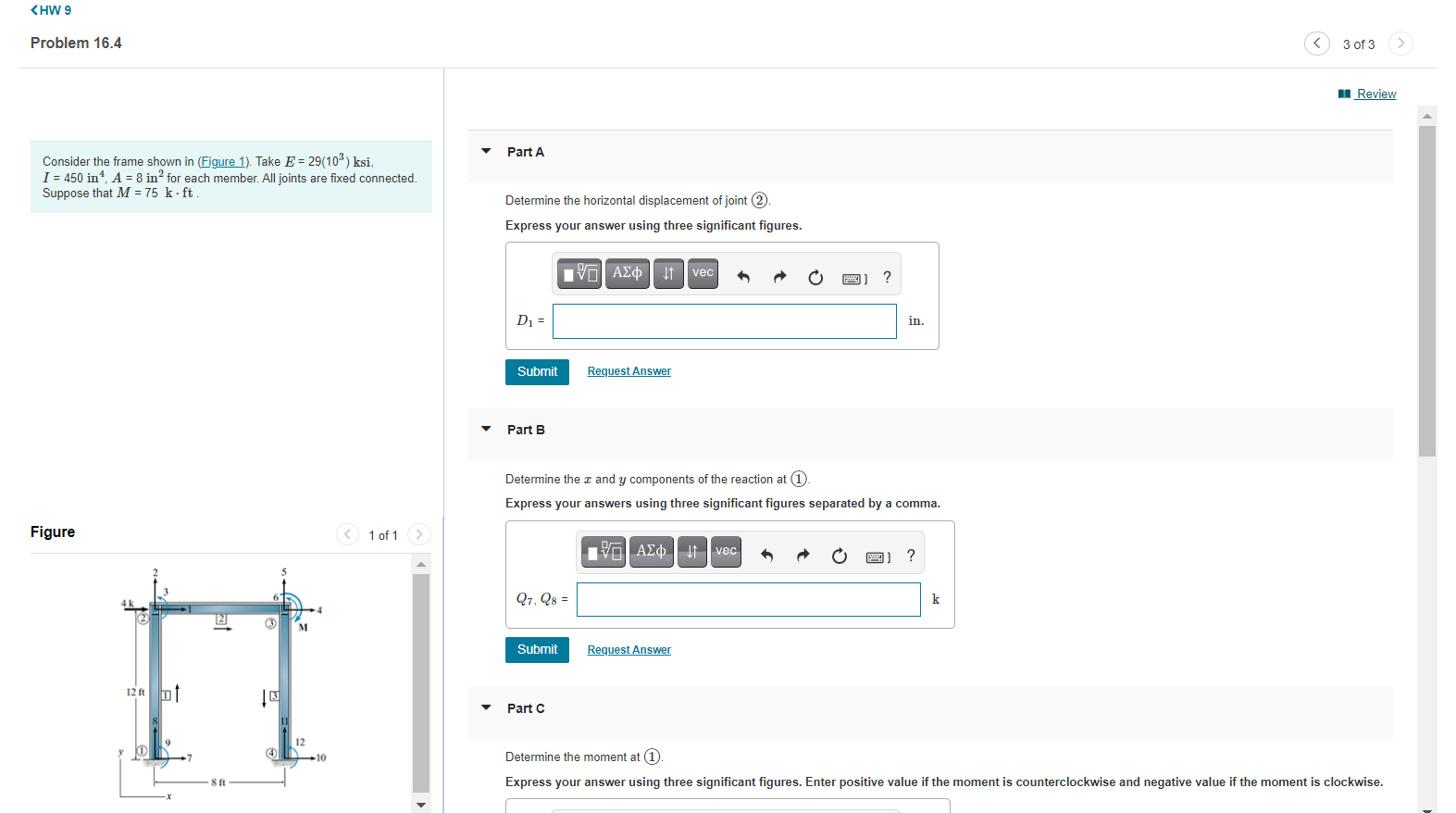

<HW 9 Problem 16.4 3 of 3 Review Part A Consider the frame shown in (Figure 1). Take E = 29(103) ksi, I = 450 in*. A = 8 in2 for each member. All joints are fixed connected. Suppose that M = 75 k. ft Determine the horizontal displacement of joint 2 Express your answer using three significant figures. VAZQ11 vec ? D1 = in. Submit Request Answer Part B Determine the 3 and y components of the reaction at 1 Express your answers using three significant figures separated by a comma. Figure < 1 of 1 > VAX 11 vec ? Q7. Q8 = k (3) Submit Request Answer 12 13 Part C 12 -10 Determine the moment at 1 Express your answer using three significant figures. Enter positive value if the moment is counterclockwise and negative value if the moment is clockwise.
