1. Estimate the G.I. Roof and its Accessories Based on the figure below, find the number of corrugated G.I. roof sheets

[answerhappygod]

1 Estimate The G I Roof And Its Accessories Based On The Figure Below Find The Number Of Corrugated G I Roof Sheets 1 (16.94 KiB) Viewed 41 times

1 Estimate The G I Roof And Its Accessories Based On The Figure Below Find The Number Of Corrugated G I Roof Sheets 2 (27.9 KiB) Viewed 41 times

1 Estimate The G I Roof And Its Accessories Based On The Figure Below Find The Number Of Corrugated G I Roof Sheets 3 (49.46 KiB) Viewed 41 times

1. Estimate the G.I. Roof and its Accessories Based on the figure below, find the number of corrugated G.I. roof sheets and its accessories required if the side lapping specify 1 - 1/2 corrugations with 30 cm end lapping on a 2" x 3" purlins.

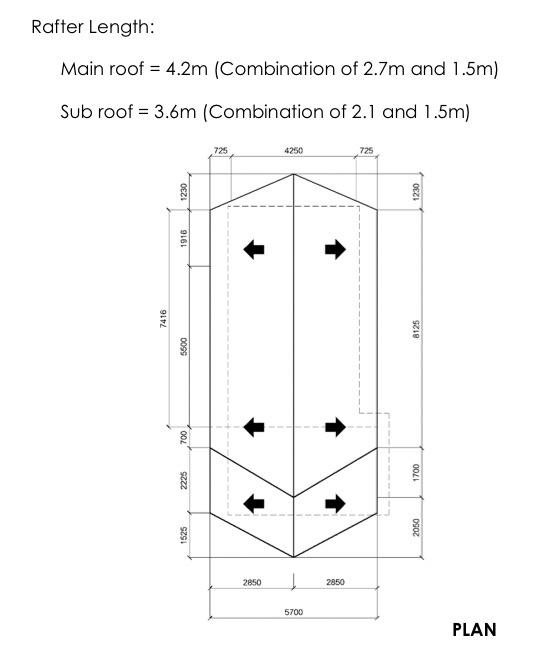

Rafter Length: Main roof = 4.2m (Combination of 2.7m and 1.5m) Sub roof = 3.6m (Combination of 2.1 and 1.5m) 725 4250 725 1230 1230 9161 7416 8125 5600 700 1700 2225 1525 2050 2850 1 2850 5700 PLAN

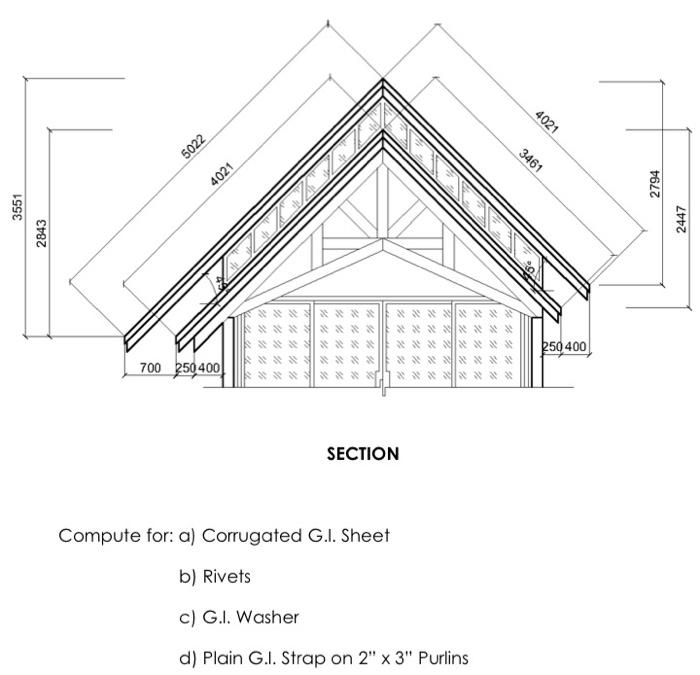

4021 5022 3461 4021 2794 3551 2447 2843 72 72 XNXX NINUN UNUN XXNNNN XXNNNN 250 400 700 250400 %%% SECTION Compute for: a) Corrugated G.I. Sheet b) Rivets c) G.I. Washer d) Plain G.I. Strap on 2" x 3" Purlins
