The simply supported beam consists of a W21 × 44 structural
steel wide-flange shape [E = 29,000
ksi; I = 843 in.4]. Assume that the
support at D can provide resistance either up or
down. For a loading of w = 5 kips/ft,
determine:
(a) the beam deflection vA at
point A.
(b) the beam deflection vC at
point C.
The Simply Supported Beam Consists Of A W21 44 Structural Steel Wide Flange Shape E 29 000 Ksi I 843 In 4 Assu 1 (52.3 KiB) Viewed 28 times

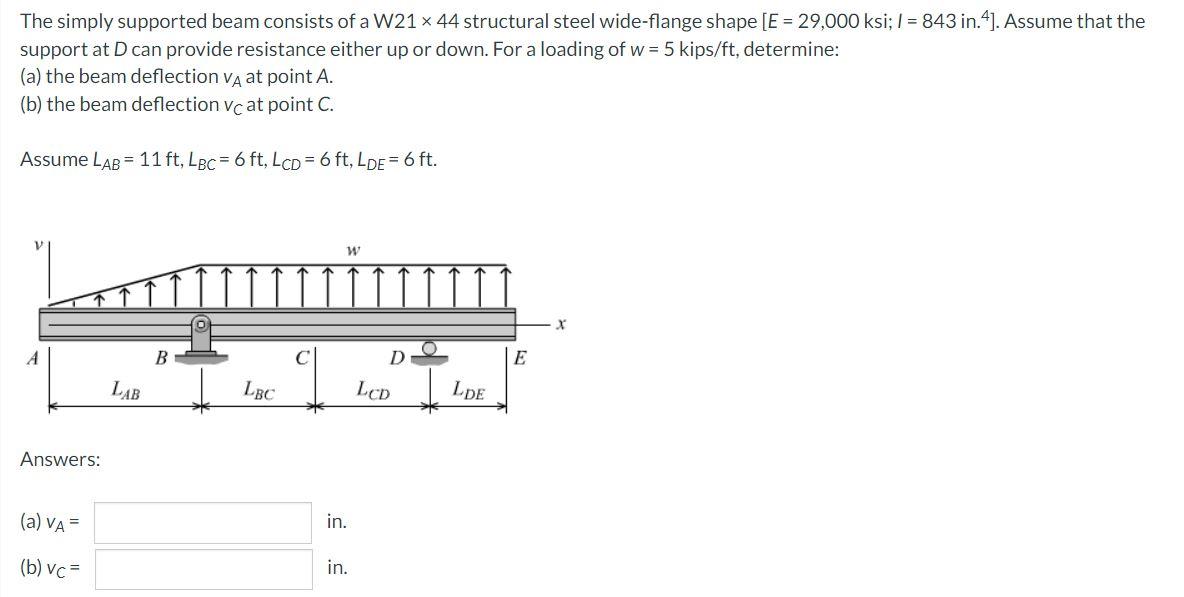

The simply supported beam consists of a W21 x 44 structural steel wide-flange shape [E = 29,000 ksi; I = 843 in.4). Assume that the support at D can provide resistance either up or down. For a loading of w= 5 kips/ft, determine: (a) the beam deflection VA at point A. (b) the beam deflection vcat point C. Assume LAB = 11 ft. LBC = 6 ft. LcD = 6 ft, LDE = 6 ft. w X A B D E LAB LBC Lco LDE Answers: (a) VA= in. (b) vc= in.
