2. The left figure below shows the layout of three stato (11,12 and 13) connected by joint 1 and 2. The right figure bel
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. The left figure below shows the layout of three stato (11,12 and 13) connected by joint 1 and 2. The right figure bel

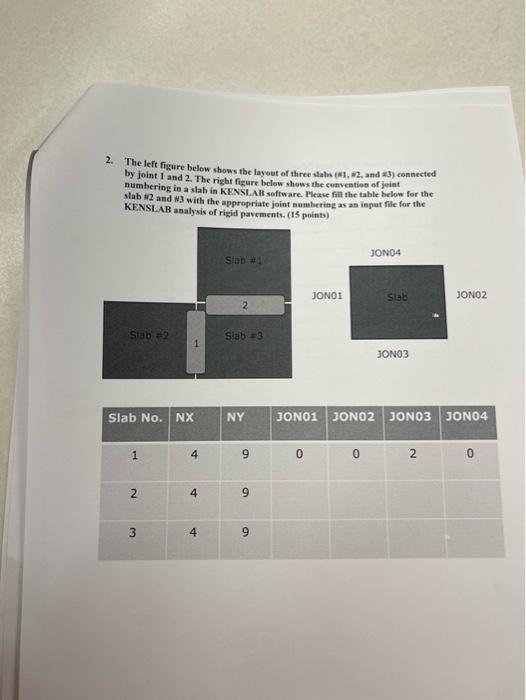

2. The left figure below shows the layout of three stato (11,12 and 13) connected by joint 1 and 2. The right figure below shows the convention of joint numbering in a slab in KENSLAR software. Please fill the table below for the slab 12 and 3 with the appropriate joint numbering as an input file for the KENSLAB analysis of rigid pavements. (15 points) JONO4 Slab #1 JONO1 Stab JONO2 2 Siab 2 Slab 3 JONO3 Slab No. NX NY JONO1 JONO2 JONO3 JON04 1 4 9 0 0 2 0 2 4 9 4 9
