3.4. Determine the discharge in the 16-in. diameter waterline shown in Figure P9.3.4. The nozzle meter has a throat diam

Post by answerhappygod »

3 4 Determine The Discharge In The 16 In Diameter Waterline Shown In Figure P9 3 4 The Nozzle Meter Has A Throat Diam 1
3 4 Determine The Discharge In The 16 In Diameter Waterline Shown In Figure P9 3 4 The Nozzle Meter Has A Throat Diam 1 (54.03 KiB) Viewed 18 times

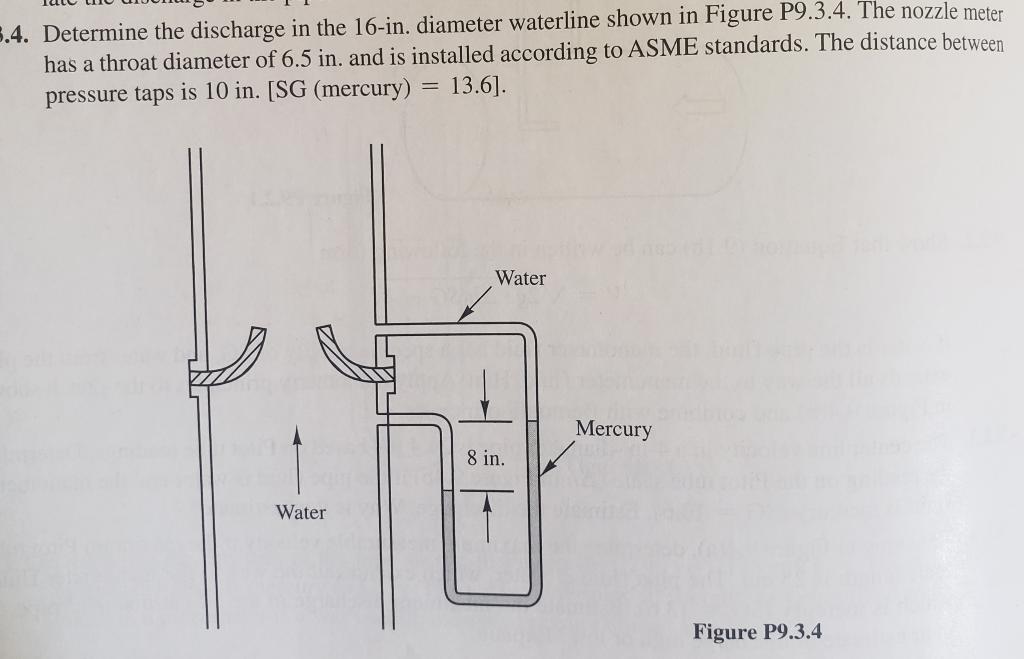

3.4. Determine the discharge in the 16-in. diameter waterline shown in Figure P9.3.4. The nozzle meter has a throat diameter of 6.5 in. and is installed according to ASME standards. The distance between pressure taps is 10 in. [SG (mercury) 13.6). Water Mercury 8 in. Water Figure P9.3.4
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
