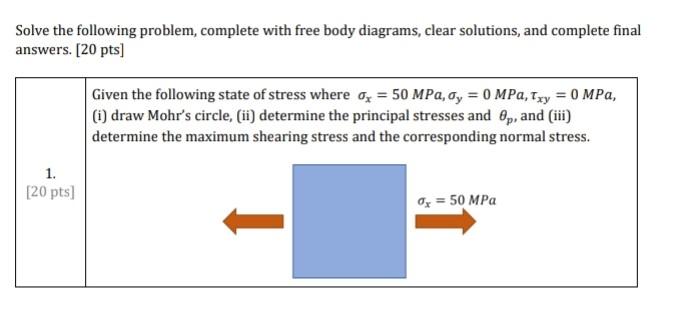

Solve the following problem, complete with free body diagrams, clear solutions, and complete final answers. [20 pts] Given the following state of stress where 0x = 50 MPa, Gy = 0 MPa, Txy = 0 MPa, (i) draw Mohr's circle, (ii) determine the principal stresses and Op, and (iii) determine the maximum shearing stress and the corresponding normal stress. 1. [20 pts) Ox = 50 MPa
