= m A vertical force F is supplied to a piston located inside a cylinder containing water (Pwater = 1000 kg m-3) as show

Post by answerhappygod »

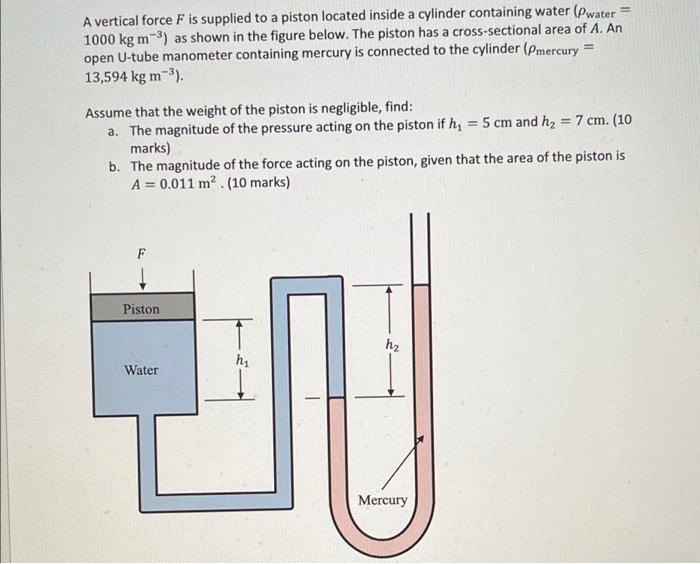

M A Vertical Force F Is Supplied To A Piston Located Inside A Cylinder Containing Water Pwater 1000 Kg M 3 As Show 1
M A Vertical Force F Is Supplied To A Piston Located Inside A Cylinder Containing Water Pwater 1000 Kg M 3 As Show 1 (51.57 KiB) Viewed 44 times
= m A vertical force F is supplied to a piston located inside a cylinder containing water (Pwater = 1000 kg m-3) as shown in the figure below. The piston has a cross-sectional area of A. An open U-tube manometer containing mercury is connected to the cylinder (Pmercury = 13,594 kg m-3). Assume that the weight of the piston is negligible, find: a. The magnitude of the pressure acting on the piston if hy = 5 cm and hz = 7 cm. (10 marks) b. The magnitude of the force acting on the piston, given that the area of the piston is A = 0.011 m2. (10 marks) F Piston h2 hi Water Mercury
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
