The simply supported beam consists of a W14 34 structural steel wide-flange shape [E = 29,000 ksi; I = 340 in.4). For th

Post by answerhappygod »

The Simply Supported Beam Consists Of A W14 34 Structural Steel Wide Flange Shape E 29 000 Ksi I 340 In 4 For Th 1
The Simply Supported Beam Consists Of A W14 34 Structural Steel Wide Flange Shape E 29 000 Ksi I 340 In 4 For Th 1 (51.31 KiB) Viewed 26 times

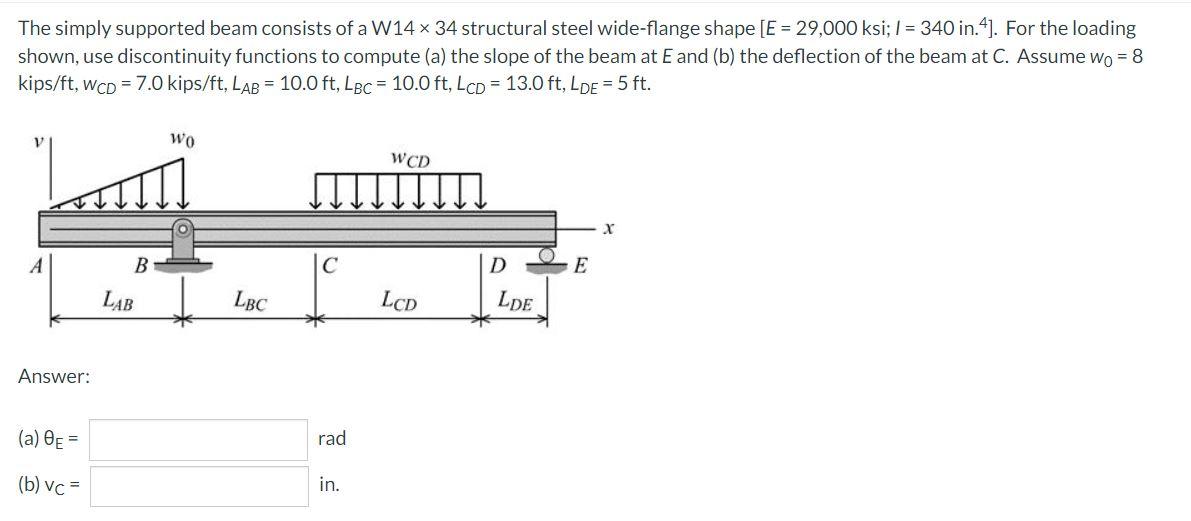

The simply supported beam consists of a W14 34 structural steel wide-flange shape [E = 29,000 ksi; I = 340 in.4). For the loading shown, use discontinuity functions to compute (a) the slope of the beam at E and (b) the deflection of the beam at C. Assume wo = 8 kips/ft, wcD = 7.0 kips/ft, LAB = 10.0 ft. LBC = 10.0 ft, LCD = 13.0 ft, LDE = 5 ft. V WO WCD X A B C с D E LAB LBC LCD LDE Answer: (a) = rad (b) vc= in.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
