Determine the lightest W-shape based on limiting deflection. Assume modulus of elasticity (E) is 29,000 ksi. Deflection

Post by answerhappygod »

Determine The Lightest W Shape Based On Limiting Deflection Assume Modulus Of Elasticity E Is 29 000 Ksi Deflection 1
Determine The Lightest W Shape Based On Limiting Deflection Assume Modulus Of Elasticity E Is 29 000 Ksi Deflection 1 (28.32 KiB) Viewed 23 times

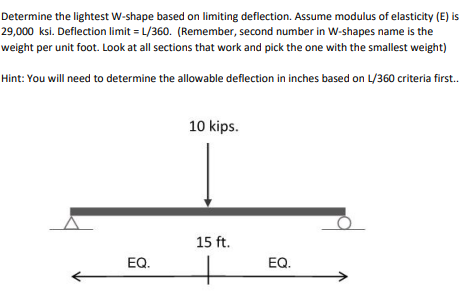

Determine the lightest W-shape based on limiting deflection. Assume modulus of elasticity (E) is 29,000 ksi. Deflection limit = 1/360. (Remember, second number in W-shapes name is the weight per unit foot. Look at all sections that work and pick the one with the smallest weight) Hint: You will need to determine the allowable deflection in inches based on 4/360 criteria first.. 10 kips. 15 ft. EQ. EQ.
